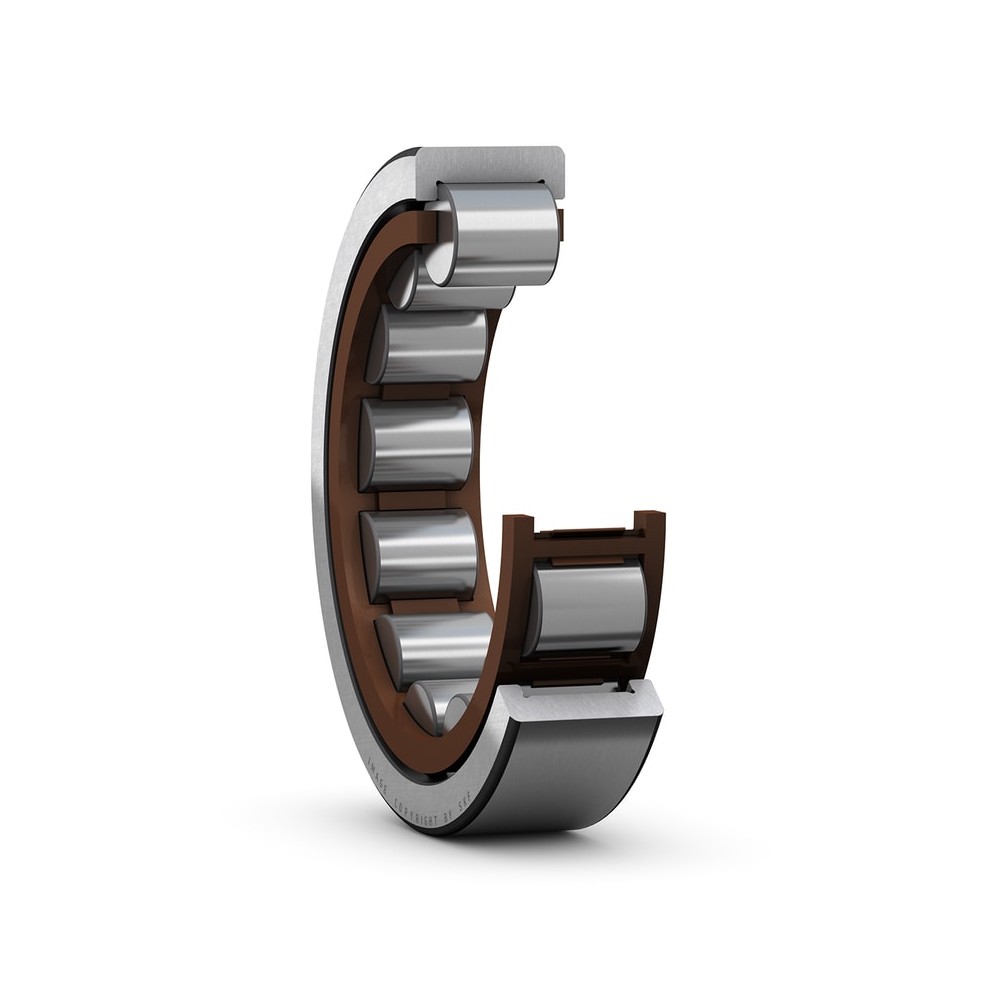

SKF RNU 202 ECP Cylindrical roller bearings

SKF RNU 202 ECP Cylindrical roller bearings

Product Code: RNU 202 ECP
Part/No: Eshop018470
Brand: SKF
Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.
High radial load carrying capacity
Enable a stronger, stiffer shaft
Low friction
Long service life
Accommodate axial displacement in both directions
€55.53
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 19.3 mm
Outside diameter 35 mm
Width 11 mm
Performance
Basic dynamic load rating 12.5 kN
Basic static load rating 10.2 kN
Limiting speed 26,000 r/min
Reference speed 22,000 r/min
Properties
Sealing Without
Bore type Cylindrical
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Relubrication feature Without
Tolerance class Normal
Bearing part Bearing without inner ring
Number of flanges outer ring 2
Coating Without
Logistics
Pack gross weight 0.042 kg
EAN 7316577032676
Product net weight 11.558 kg
