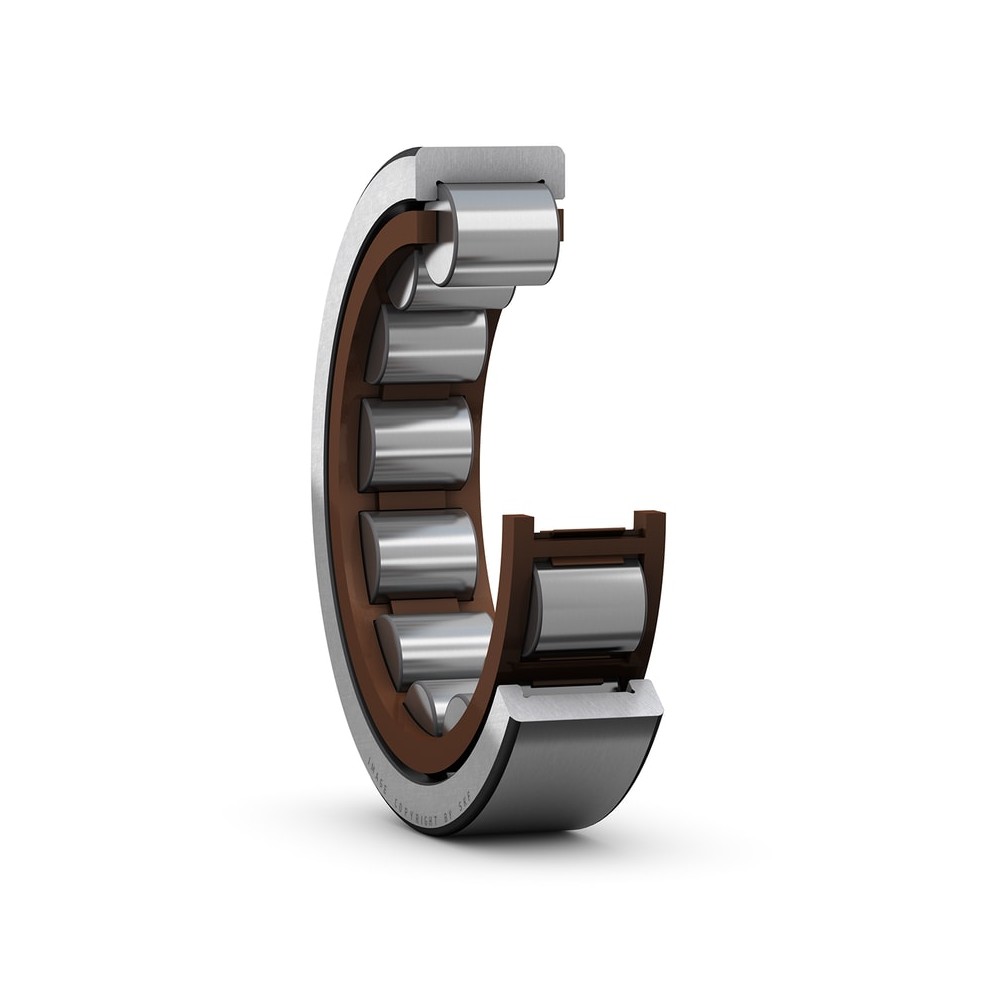

SKF RNU 308 ECP Cylindrical roller bearings

SKF RNU 308 ECP Cylindrical roller bearings

Product Code: RNU 308 ECP
Part/No: Eshop018496
Brand: SKF
Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.
High radial load carrying capacity
Enable a stronger, stiffer shaft
Low friction
Long service life
Accommodate axial displacement in both directions
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 52 mm
Outside diameter 90 mm
Width 23 mm
Performance
Basic dynamic load rating 93 kN
Basic static load rating 78 kN
Limiting speed 9,500 r/min
Reference speed 8,000 r/min
Properties
SKF performance class SKF Explorer
Sealing Without
Bore type Cylindrical
Cage Nonmetallic
Locating feature bearing outer ring None
Lubricant None
Number of rows 1
Relubrication feature Without
Tolerance class Normal
Bearing part Bearing without inner ring
Number of flanges outer ring 2
Coating Without
Logistics
Pack gross weight 513.8 g
EAN 7316577722713
Product net weight 271.8 g
