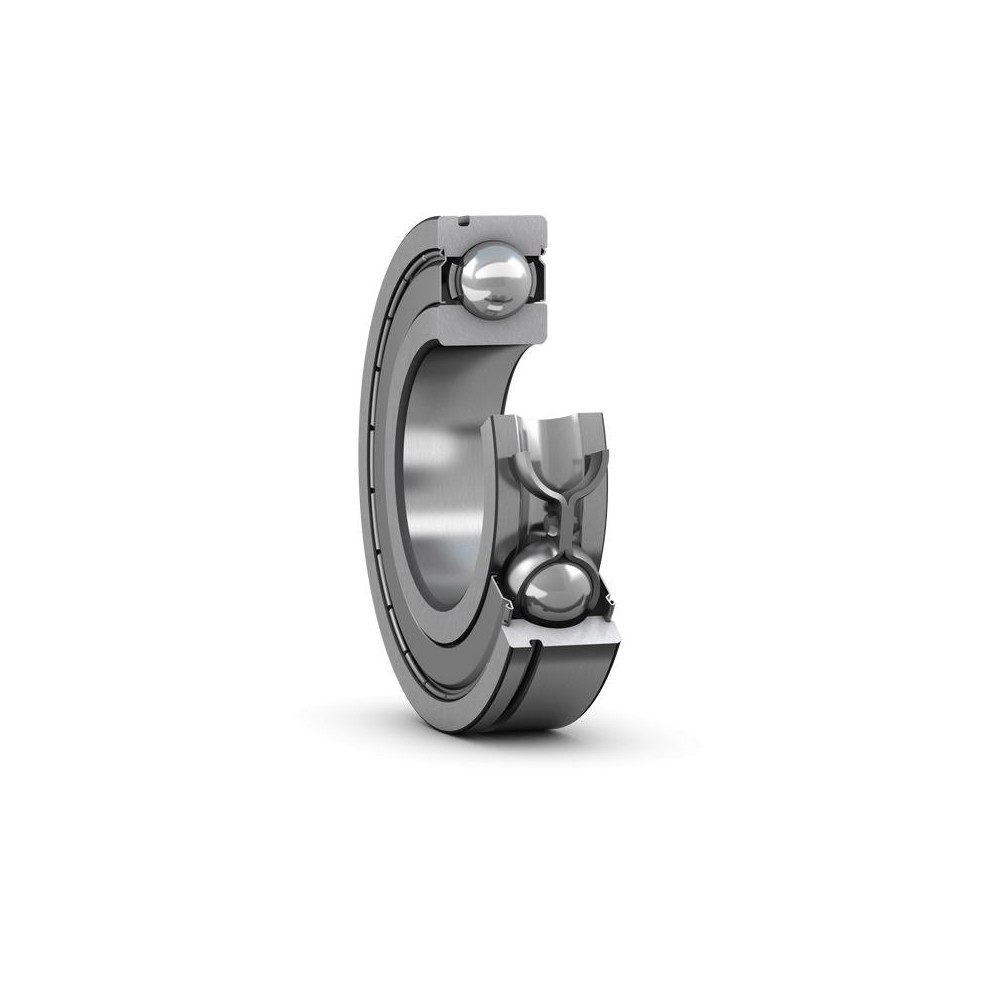

SKF 6204-2ZN/C5S2VT127 Deep groove ball bearings

SKF 6204-2ZN/C5S2VT127 Deep groove ball bearings

Product Code: 6204-2ZN/C5S2VT127
Part/No: Eshop005370
Brand: SKF
Single row deep groove ball bearing with snap ring groove and seals or shields on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. An annular groove in the outer ring enables the bearings to retain a snap ring. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Can accommodate a snap ring
Integral sealing prolongs bearing service life
Typical benefits of single row deep groove ball bearings
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 20 mm
Outside diameter 47 mm
Width 14 mm
Performance
Basic dynamic load rating 12.7 kN
Basic static load rating 6 kN
Limiting speed 17,000 r/min
Reference speed 32,000 r/min
Properties
SKF performance class SKF Explorer
Sealing type Noncontact
Sealing Shield on both sides
Bore type Cylindrical
Cage Sheet metal
Locating feature bearing outer ring Snap ring groove
Lubricant Grease
Number of rows 1
Radial internal clearance C5
Relubrication feature Without
Tolerance class Class P6 (P6)
Filling slots Without
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 108.8 g
eClass name Deep groove ball bearing
EAN 7316571278568
Product net weight 0.106 kg
