SKF 729865 A Feeler gauges

Product Code: 729865 A

Part/No: 033436

Brand: SKF

Click here for more details

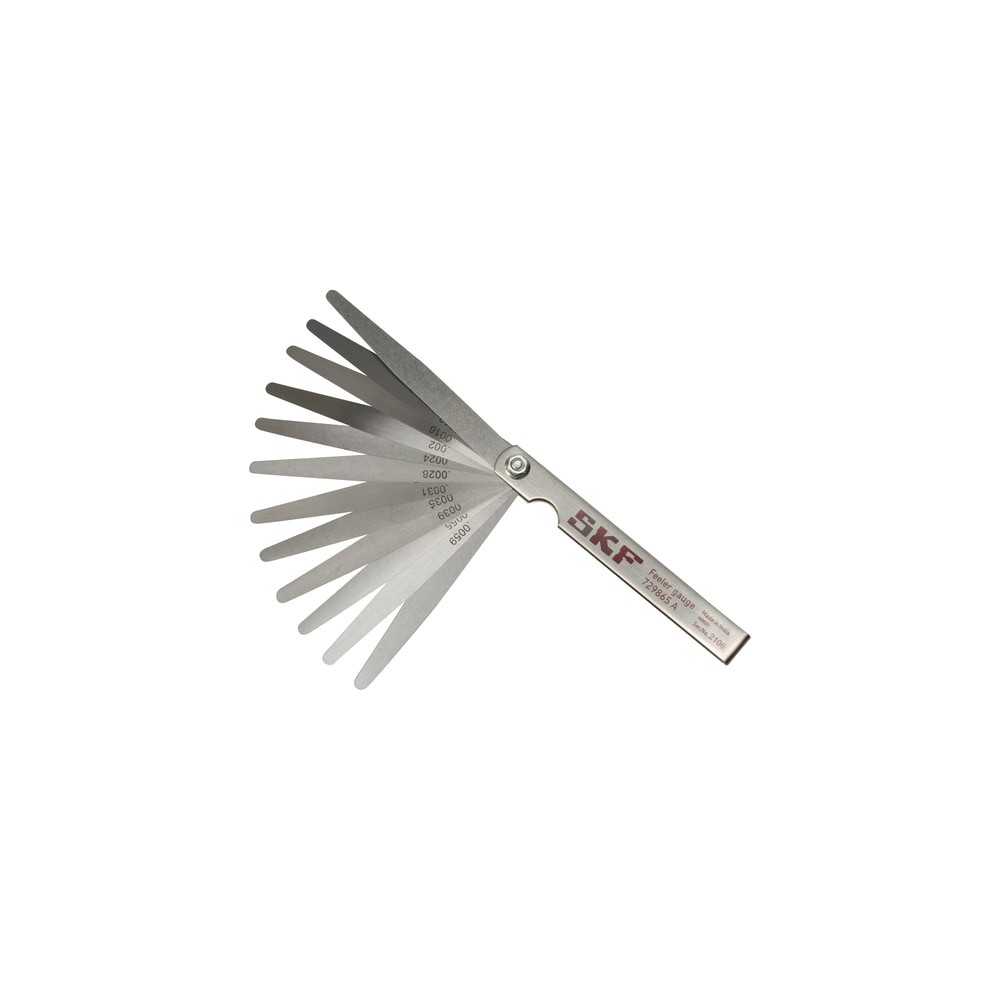

SKF Feeler Gauges 729865 A are designed to mearure clearances. A typical application is to measure the internal clearance of spherical roller bearings during the mounting process. The 729865 A consists of 13 blades of 100 mm (4 in.) in a plastic cover.

Compact set of feeler gauges
Suitable to measure internal bearing clearance of spherical roller bearings
13x blades of 100 mm (4 in.) length
Protective plastic cover

€43.87

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Product weight 0.06 kg

Performance

Properties

Material Hardened and polished high quality high carbon alloy spring steel

Coating None

Colour Metallic

Suitable for bearing type (s) SRB

Blade length 100 mm

Suitable for bearing mounting on a Sleeve (adapter or withdrawal) Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.

Suitable for bearing mounting on a Tapered seating (conical shaft) Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.

Number of Blades 13

Suitable for Drive up method Not required but can used as additonal clearance check

Recommended applications To mount bearings without the SKF drive up method (manual way to reduce the radial internal clearance);For checking clearances in bearings;For inspecting clearances in other applications.

Special features Protective stainless steel housing;Each blade marked with its thickness;Supplied in plastic storage cover

Blade thickness 0.03 mm / 0.04 mm / 0.05 mm / 0.06 mm / 0.07 mm / 0.08 mm / 0.09 mm / 0.10 mm / 0.12 mm / 0.14 mm / 0.15 mm / 0.20 mm / 0.30

Blade width 10 mm

Logistics

Pack gross weight 0.033 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 73-15-21-01

EAN code 07316577079848

Product net weight 0.032 kg

eClass code 23-05-19-01
