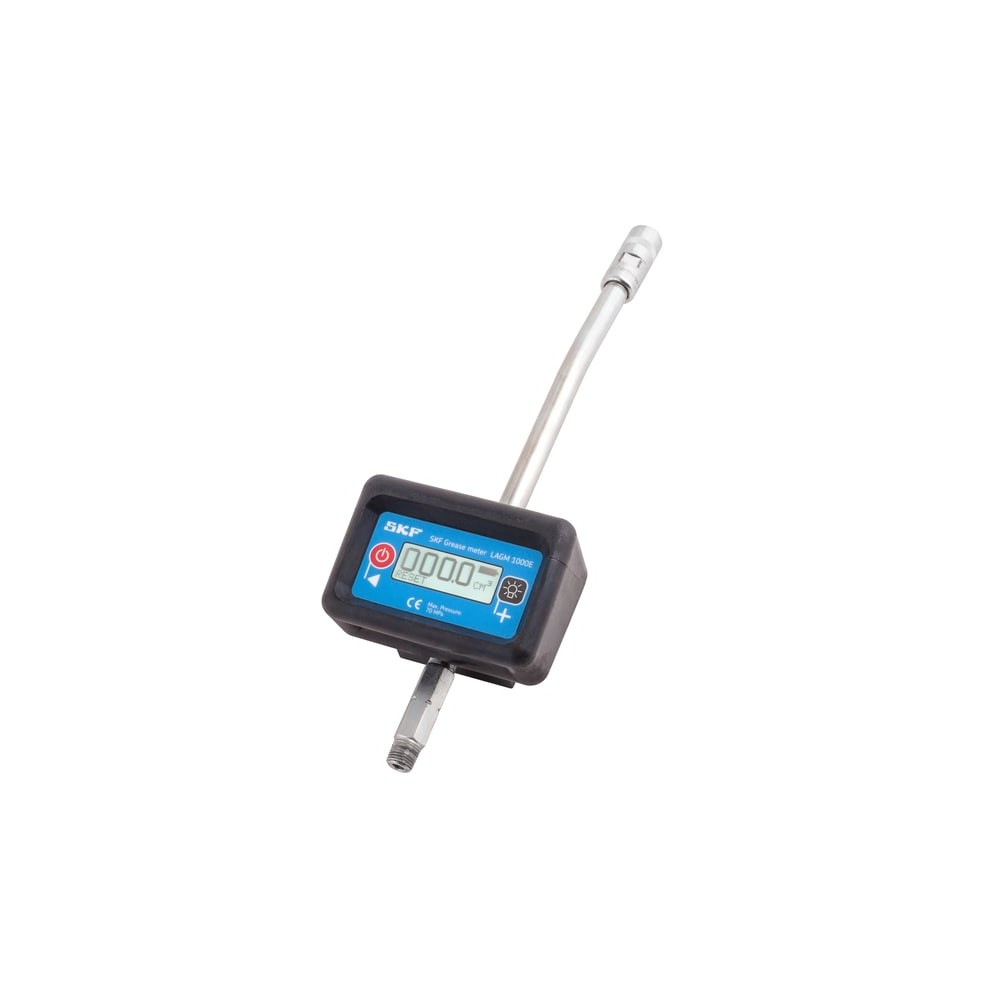

SKF LAGM 1000E Grease meters

SKF LAGM 1000E Grease meters

Product Code: LAGM 1000E
Part/No: Eshop041759
Brand: SKF
The SKF Grease Meter LAGM 1000E measures accurately the amount of grease passing through. Generally it is difficult to supply an accurate grease quantity per stroke when manually lubricating bearings. The right amount of grease, however, is critical for t
Suitable for most NLGI 0-3 greases
Small, compact and lightweight design
Corrosion-free aluminium housing with rubber sleeve protection
Compatible with all SKF grease guns
Backlit LCD display with large and easy-to-read digits
€512.47
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Suitable for Hand size 10 mm
Performance
Width across flats 1 700 bar
Maximum pressure 70 MPa
Properties
Content Grease meter,Rubber protective sleeve,1x AA battery,Outlet tube,Inlet tube,4-Jaw coupler
Recommended applications For accurately measuring the quantity of grease when manually lubricating bearings or other lubrication points.
Product weight 0.4 kg
Ambient temperature range -20 – 55 °C
Battery 1x 1.5 V AA Alkaline battery
Degree of protection (IP) IP 67
Battery Life 50 hrs, with backlight<br>2000 hrs, without backlight<br>10000 hrs, display off
NLGI consistency class NLGI 0 - NLGI 3
Software features Total and Subtotal counting,Autoswitch off programable,Display brightness selectable,Measuring units selectable,Automatic activation,Calibration mode
Display Backlit LCD display (4 digits / 9 mm)
Operation Electronic grease meter with display
Suitable operating devices For mounting on grease guns and grease triggers from grease pumps
Measurement modes cm³, g, US fl. oz or oz
Logistics
EAN code 07316572298305
Product net weight 0.4 kg
eClass name Lubricating arrangement (grease, parts)
Pack gross weight 0.69 kg
UNSPSC name Grease
