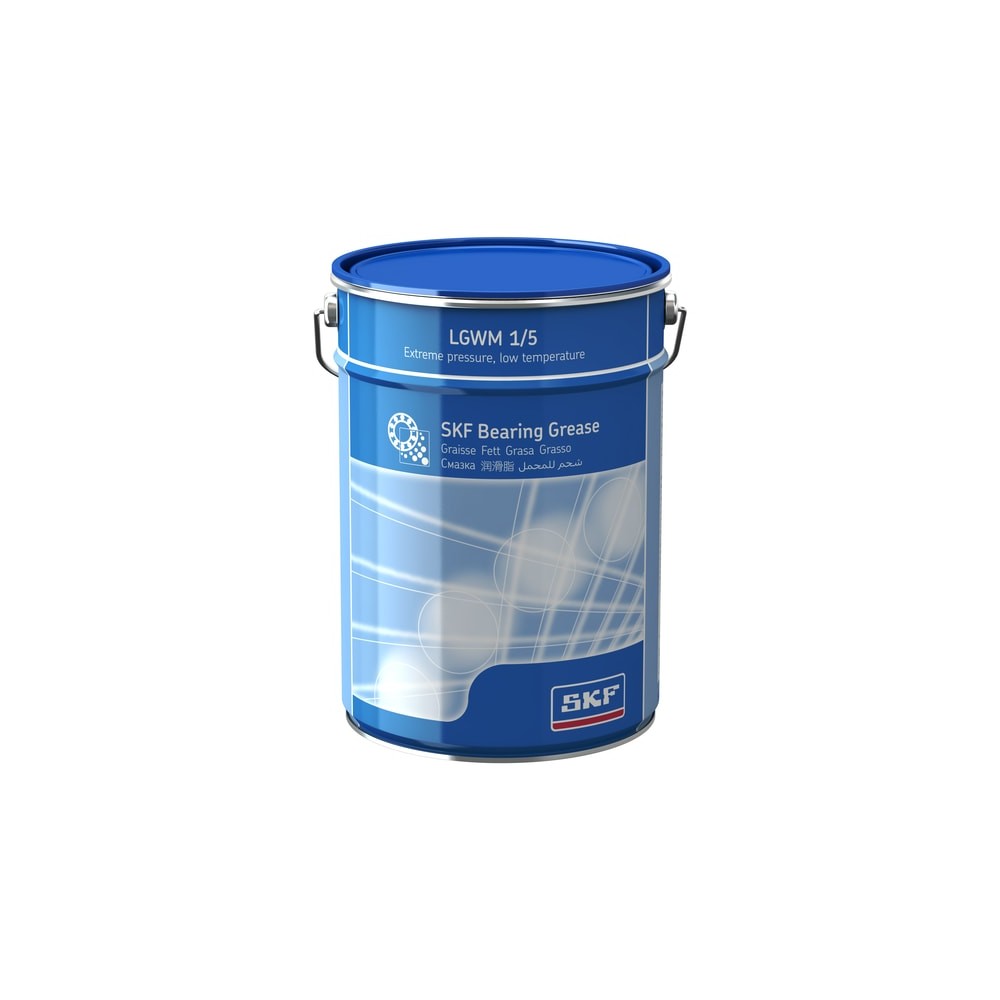

SKF LGWM 1/5 Greases

SKF LGWM 1/5 Greases

Product Code: LGWM 1/5
Part/No: Eshop041407
Brand: SKF
A low consistency mineral oil based grease, using a lithium soap and containing extreme pressure additives. It is extremely suitable for the lubrication of bearings operating under both radial and axial loads.
Good oil film at very low temperatures
Good pumpability down to low temperatures
Good corrosion protection
Good water resistance
€223.14
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Product weight 5 kg
Performance
Properties
Packsize 5 kg can
Colour Brown
Base oil type Mineral
Base oil viscosity DIN 51562 at 100 °C 16 mm²/s
Base oil viscosity DIN 51562 at 40 °C 200 mm²/s
DIN 51825 code KP1G-30
Thickener Lithium
NLGI consistency class 1
Operating temperature range -30 – 110 °C
Available for single point lubrication no
Shelf life 5 year
Suitable for High load applications +
Suitable for applications with Oscilating movements +
Suitable for applications that require Rust protection +
Suitable for applications that require Frequent start-up ++
Suitable for Vertical shaft applications −−
Suitable for applications with Severe vibrations −
Suitable for applications that require Water resistance +
Copper corrosion (max.) DIN 51811 /ASTM D4048, 24 hrs at 100°C 2 max. at 90°C
Corrosion protection, Emcor, ISO 11007, Distilled water 0-0
Corrosion protection, Emcor, ISO 11007 modified, 0.5% NaCl 0-0
Corrosion protection, Emcor, ISO 11007 modified, Water washout 0-0
Dropping point (min) ISO 2176 170 °C
EP performance - 4 ball - Weld load (min.) DIN 51350/4 2800 N
EP performance - 4 ball - Wear scar (max.) DIN 51350/5, 1400N 1.8 mm
Speed (max.) n x dm (x 1000) 300
Oil separation DIN 51817, 40°C, % 8-13
Penetration DIN ISO 2137, Prolonged (max.), 100 000 strokes, 10⁻¹mm +50
Penetration DIN ISO 2137, Worked, 60 strokes (10⁻¹mm) 310 - 340
Lubrication ability, R2F test B at 120°C Pass at 100°C
Rolling bearing grease life (max.) ROF test, L50 life, 10000 r/min, hrs at °C 1000 at 100°C
Mechanical stability - Roll stability, ASTM D1831 (max.) 50 hrs at 80°C, 10⁻¹mm -
Mechanical stability, V2F test, 144 hrs -
Water resistance (max.) DIN 51807/1, 3 hrs at 90 °C 1
Logistics
Pack gross weight 5.584 kg
eClass name Lubrication (fluid)
UNSPSC code 15-12-19-02
EAN code 07316570520750
Product net weight 5 kg
eClass code 23-06-01-01
