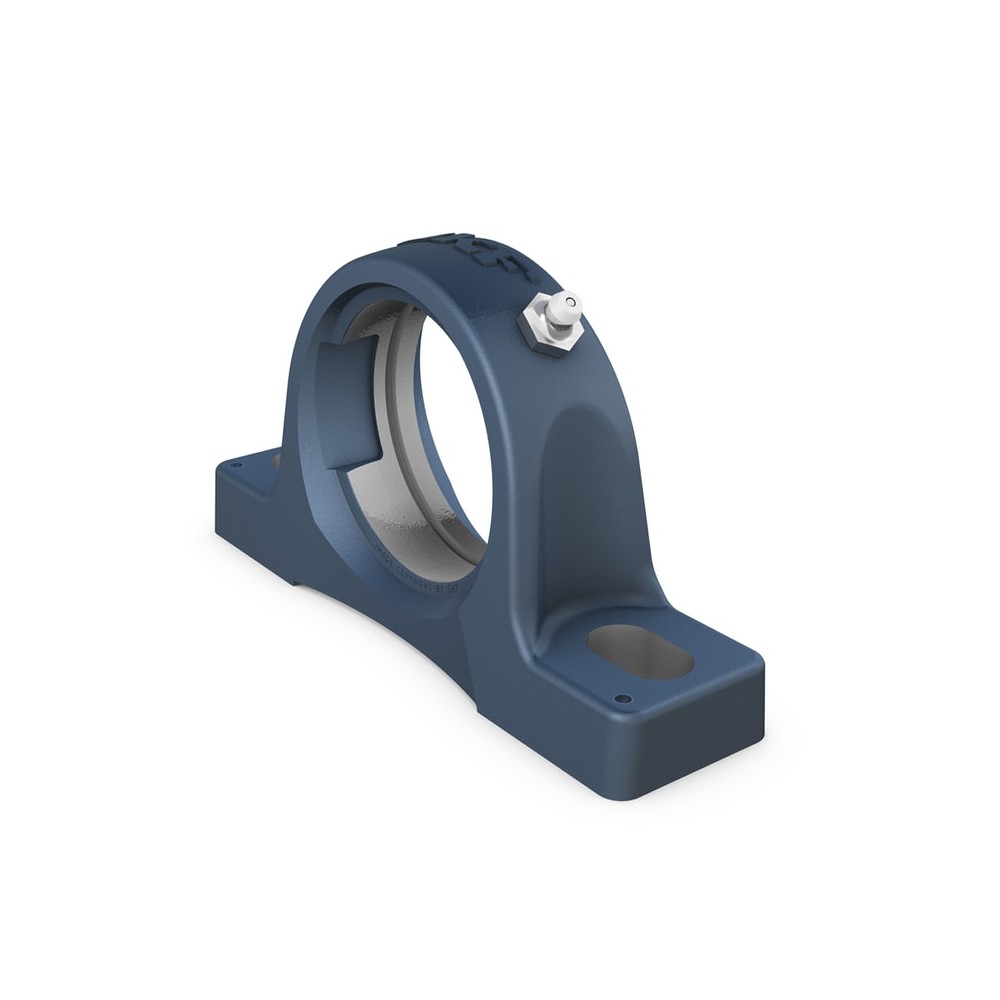

SKF SY 512 M Housings for insert bearings

SKF SY 512 M Housings for insert bearings

Product Code: SY 512 M
Part/No: 042468
Brand: SKF
Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.
Accommodate heavy loads in different directions
High degree of stiffness
Narrow design
€46.14
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Housing overall width 60 mm
Centre height pillow block 69.9 mm
Centre distance between bolt holes 190.5 mm
Properties
Coating Without
Housing type Pillow block
Material housing Cast iron
Relubrication hole With
Grease fitting With
Fastening bolt hole type Plain
Number of bolt holes for fasteners 2
Spherical seating diameter 110 mm
Logistics
EAN code 07316570334821
Product net weight 2.913 kg
eClass name Bearing with spherical outside surface
