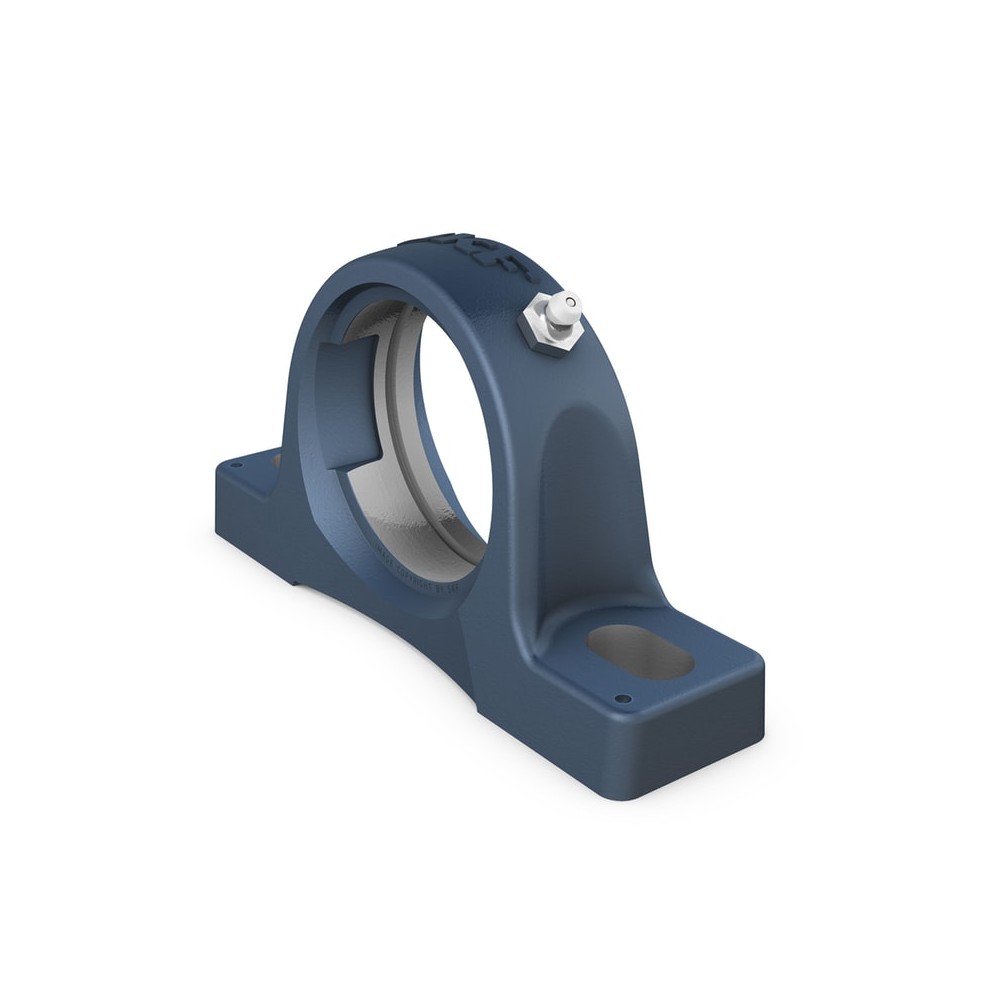

SKF SY 513 M Housings for insert bearings

SKF SY 513 M Housings for insert bearings

Product Code: SY 513 M
Part/No: 042486
Brand: SKF
Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.
Accommodate heavy loads in different directions
High degree of stiffness
Narrow design
€176.76
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Centre height pillow block 76.2 mm
Centre distance between bolt holes 203 mm
Housing overall width 65 mm
Spherical seating diameter 120 mm
Housing type Pillow block
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Coating Without
Logistics
Pack gross weight 3.826 kg
eClass name Bearing with spherical outside surface
EAN 7316577060808
Product net weight 1898.5 g
