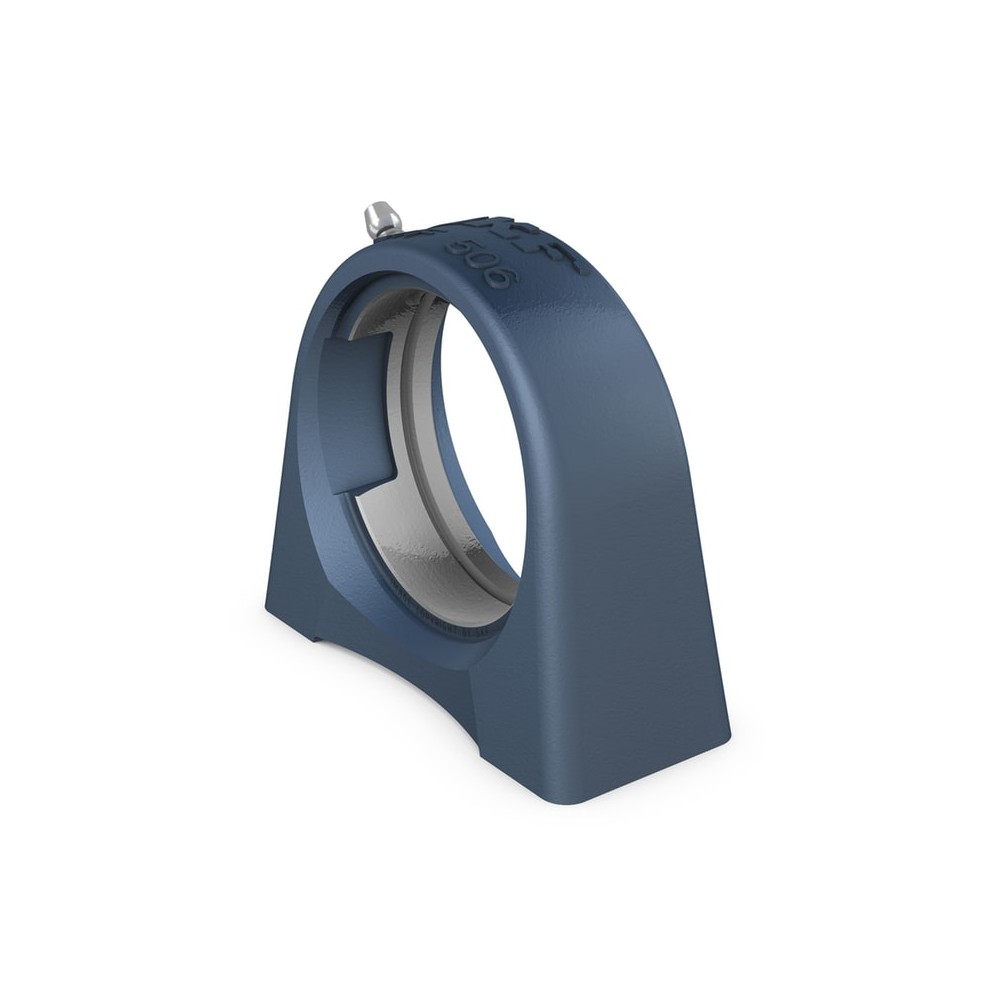

SKF SYF 506 Housings for insert bearings

SKF SYF 506 Housings for insert bearings

Product Code: SYF 506
Part/No: 042508
Brand: SKF
Short base pillow (plummer) block housings are designed to accommodate an insert bearing. They are strong, stiff and cost-effective, and are suitable for most applications. The housings has threads for attachment bolts so that it can be bolted directly to a support surface.
Accommodate heavy loads in different directions
Strong
High degree of stiffness
Narrow design
€24.80
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Housing overall width 40 mm
Centre height pillow block 42.9 mm
Centre distance between bolt holes 76.2 mm
Properties
Coating Without
Housing type Pillow block
Material housing Cast iron
Relubrication hole With
Grease fitting With
Fastening bolt hole type Threaded
Number of bolt holes for fasteners 2
Spherical seating diameter 62 mm
Logistics
EAN code 07316570069143
Product net weight 0.6775 kg
eClass name Bearing with spherical outside surface
