SKF SYF 509 Housings for insert bearings

SKF SYF 509 Housings for insert bearings

Product Code: SYF 509
Part/No: Eshop020011
Brand: SKF

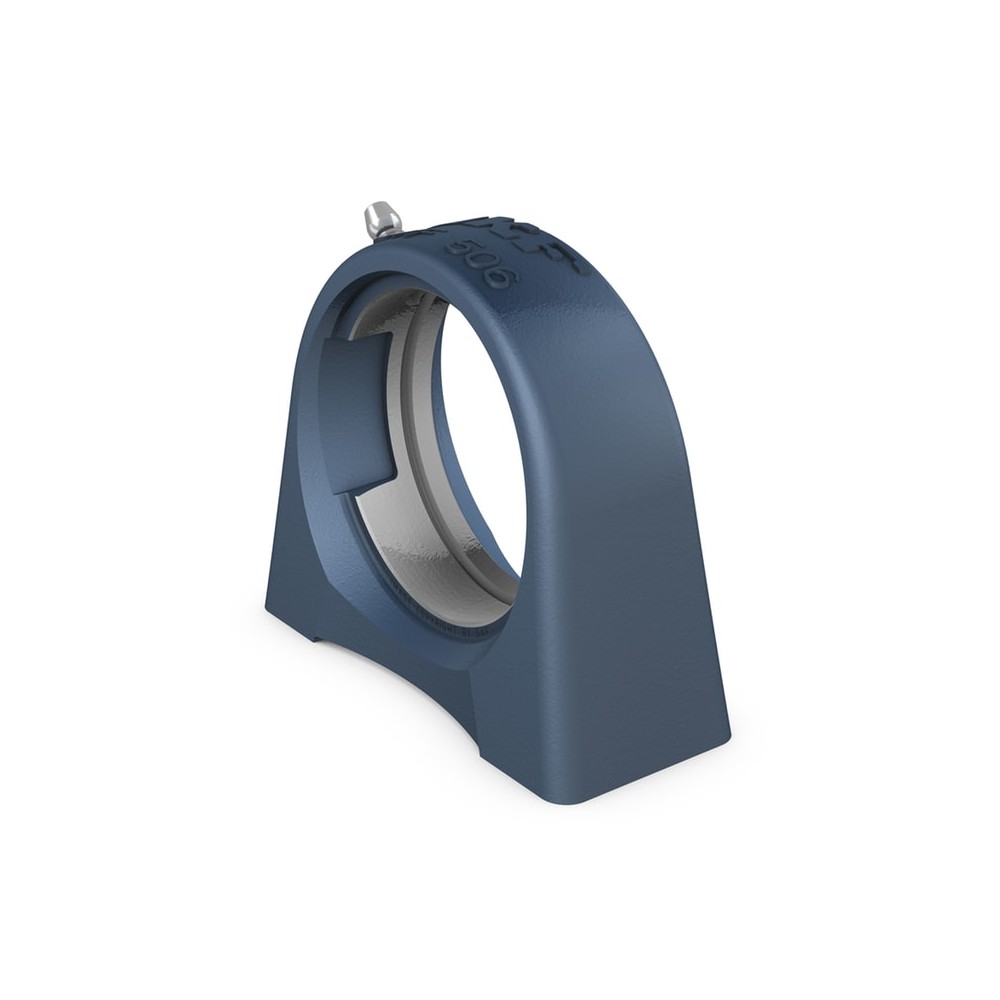

Short base pillow (plummer) block housings are designed to accommodate an insert bearing. They are strong, stiff and cost-effective, and are suitable for most applications. The housings has threads for attachment bolts so that it can be bolted directly to a support surface.
Accommodate heavy loads in different directions
Strong
High degree of stiffness
Narrow design
€101.48
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Centre height pillow block 54 mm
Centre distance between bolt holes 95.3 mm
Housing overall width 48 mm
Spherical seating diameter 85 mm
Housing type Pillow block
Material housing Cast iron
Fastening bolt hole type Threaded
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Coating Without
Logistics
Pack gross weight 1.31 kg
eClass name Bearing with spherical outside surface
EAN 7316570772531
Product net weight 677.5 g
