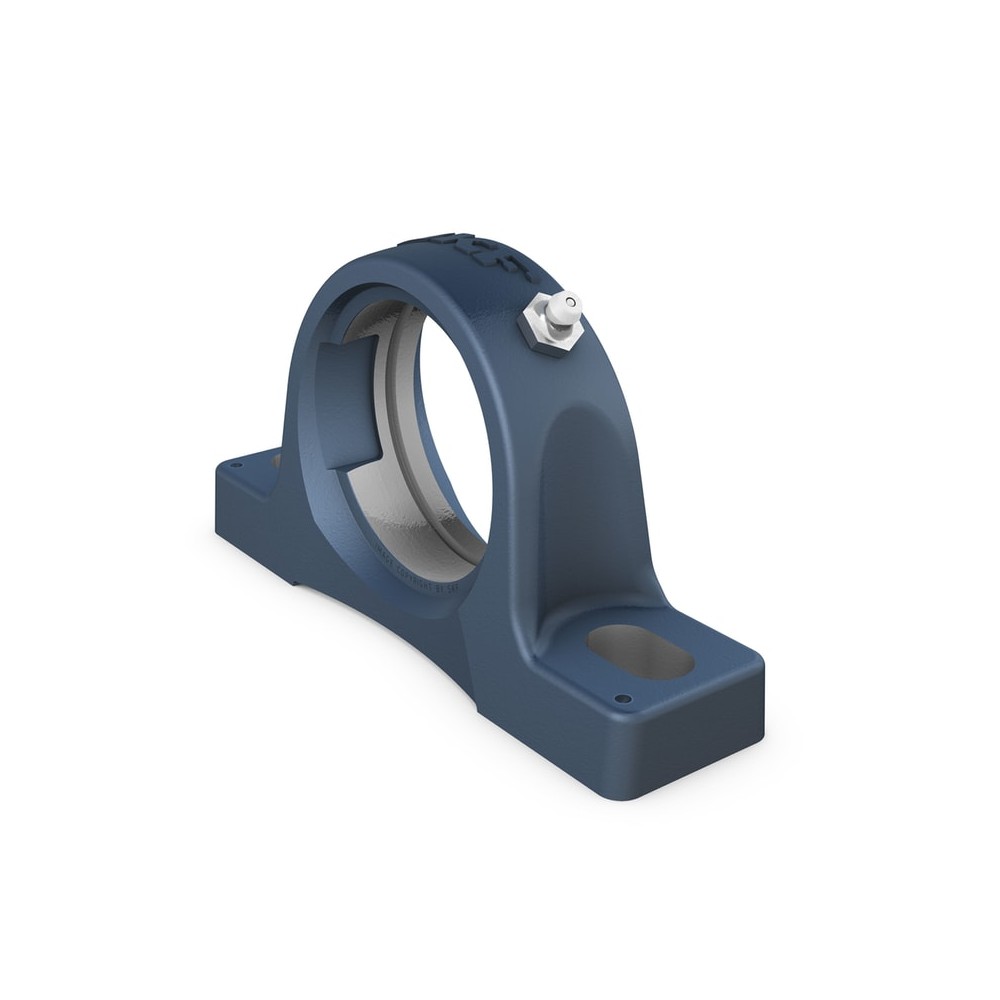

SKF SYJ 520 Housings for insert bearings

SKF SYJ 520 Housings for insert bearings

Product Code: SYJ 520
Part/No: Eshop020056
Brand: SKF
Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface. This variant is compliant with Japanese standards.
Accommodate heavy loads in different directions
Strong
High degree of stiffness
Narrow design
€478.99
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Properties
Centre height pillow block 115 mm
Centre distance between bolt holes 308 mm
Housing overall width 95 mm
Spherical seating diameter 180 mm
Housing type Pillow block
Material housing Cast iron
Fastening bolt hole type Plain
Housing type 4 Pillow block
Number of bolt holes for fasteners 2
Relubrication hole With
Grease fitting With
Coating Without
Logistics
Pack gross weight 12.645 kg
eClass name Flanged housing unit
EAN 7316571033587
Product net weight 5.02 kg
