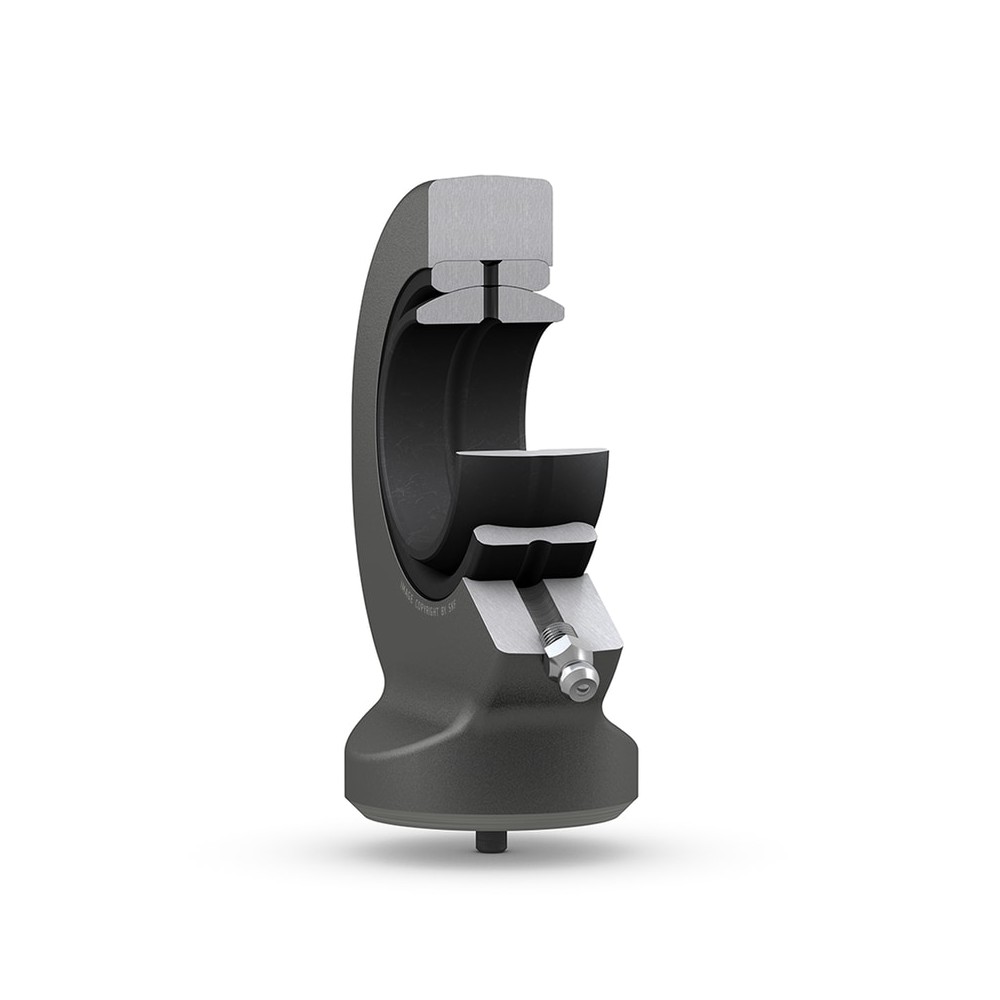

SKF SC 40 ES Rod ends

SKF SC 40 ES Rod ends

Product Code: SC 40 ES
Part/No: Eshop019521
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The dowel pin eases centring at the cylindrical section welding shank.
Suitable for heavy static, alternating or impact loads
Easy to relubricate
Easy to center
€329.26
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 100 kN
Basic static load rating 134 kN
Properties
Bore diameter bearing inner ring 40 mm
Centre height housing from end of shank 69 mm
Housing length total 118 mm
Outside diameter housing eye 94 mm
Width bearing inner ring 28 mm
Width housing eye 24 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Cylindrical section, with locating pin, for welding
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 1463.2 g
eClass name Rod end (spherical plain bearing)
EAN 7316577002785
Product net weight 0.46 kg
