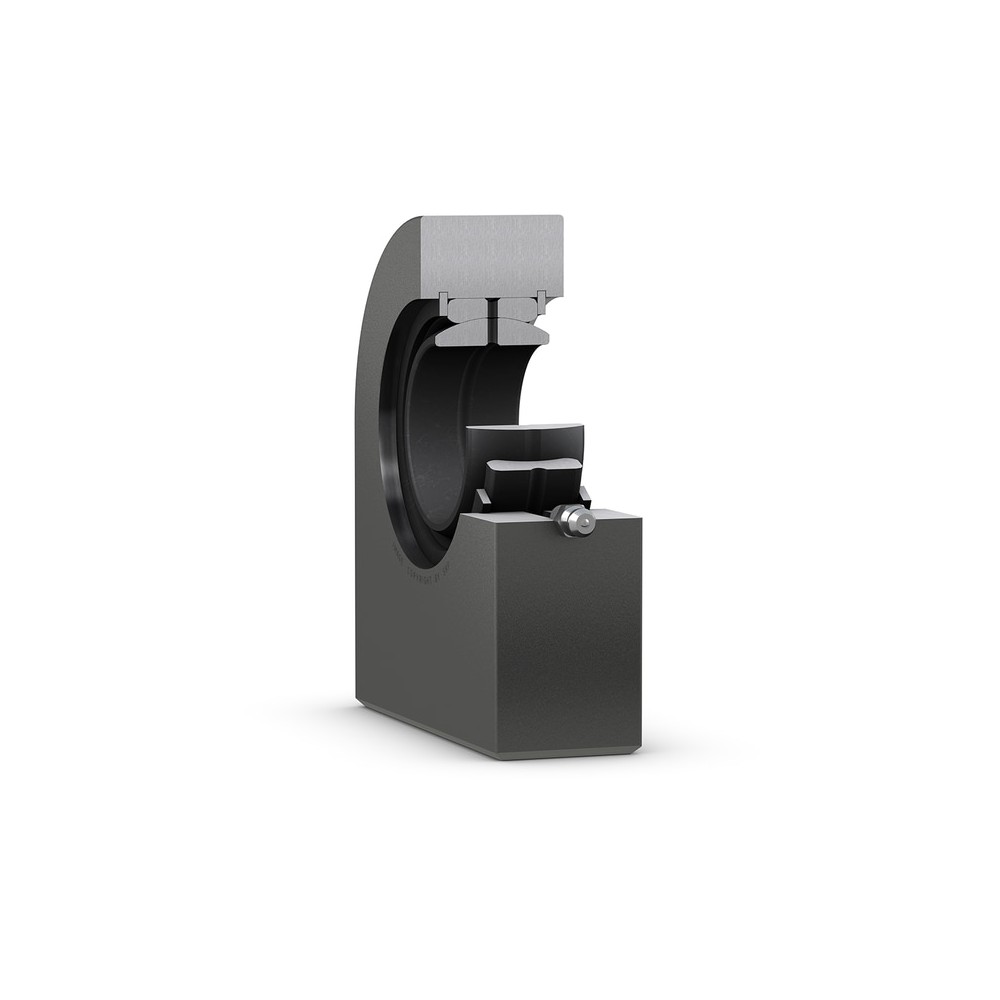

SKF SCF 25 TXG3E-2LS/VZ035 Rod ends

SKF SCF 25 TXG3E-2LS/VZ035 Rod ends

Product Code: SCF 25 TXG3E-2LS/VZ035
Part/No: Eshop019528
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.
Suitable for heavy static, alternating or impact loads
Easy to relubricate
Bearing can be exchanged
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 137 kN
Basic static load rating 65.5 kN
Properties
Bore diameter bearing inner ring 25 mm
Centre height housing from end of shank 45 mm
Housing length total 74 mm
Outside diameter housing eye 56.5 mm
Width bearing inner ring 20 mm
Width housing eye 24 mm
Sealing type Triplelip
Sealing Seal on both sides
Material housing Steel
Attachment feature rod end shank Rectangular section, for welding
Sliding contact surface combination Steel/PTFE fabric
Material inner ring Stainless steel
Material outer ring Stainless steel
Maintenance Maintenancefree
Logistics
Pack gross weight 0.568 kg
eClass name Rod end (spherical plain bearing)
EAN 7316579653930
Product net weight 31.64 kg
