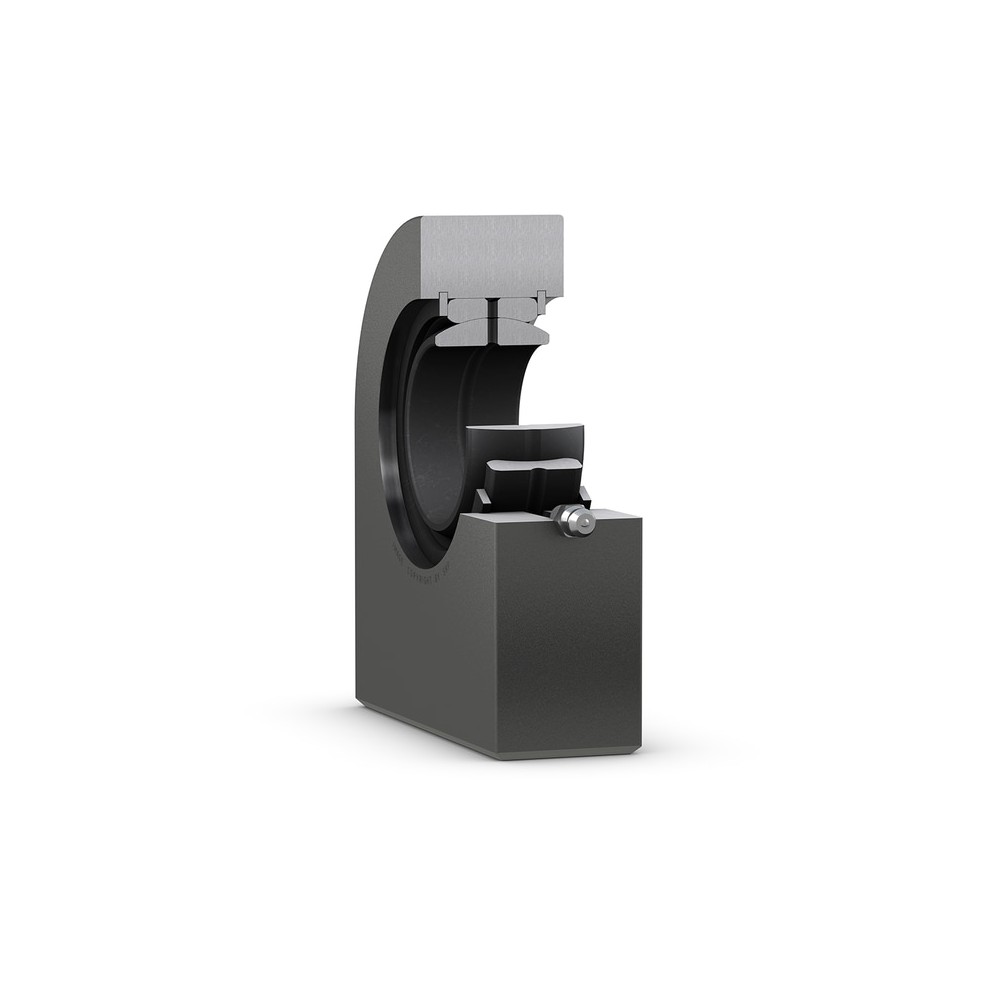

SKF SCF 70 ES Rod ends

SKF SCF 70 ES Rod ends

Product Code: SCF 70 ES
Part/No: Eshop019535
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.
Suitable for heavy static, alternating or impact loads
Easy to relubricate
Bearing can be exchanged
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 315 kN
Basic static load rating 680 kN
Properties
Bore diameter bearing inner ring 70 mm
Centre height housing from end of shank 115 mm
Housing length total 199 mm
Outside diameter housing eye 166.5 mm
Width bearing inner ring 49 mm
Width housing eye 57 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Rectangular section, for welding
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 10.735 kg
eClass name Rod end (spherical plain bearing)
EAN 7316577300492
Product net weight 3260.6 g
