SKF SCFH 100 TXE-2LS/VL141 Rod ends

SKF SCFH 100 TXE-2LS/VL141 Rod ends

Product Code: SCFH 100 TXE-2LS/VL141
Part/No: Eshop019537
Brand: SKF

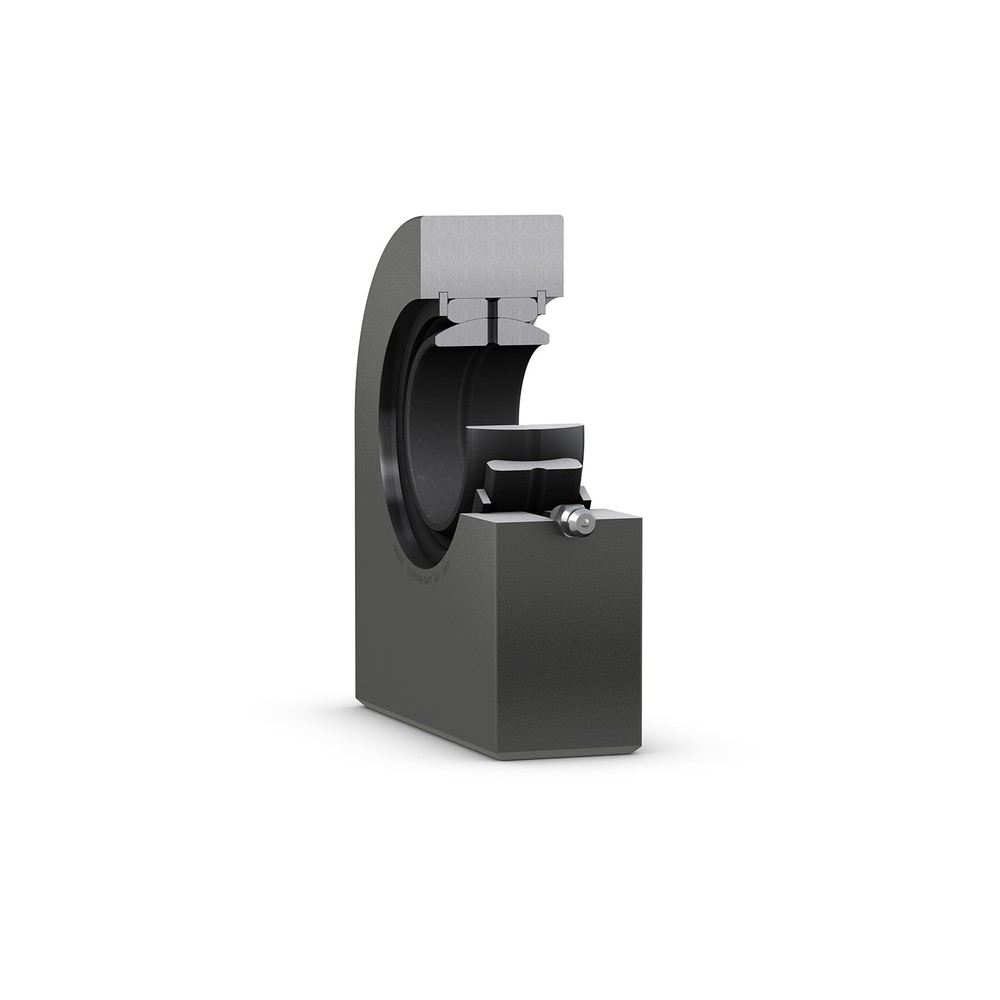

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.
Suitable for heavy static, alternating or impact loads
Easy to relubricate
Bearing can be exchanged
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 1,860 kN
Basic static load rating 2,200 kN
Properties
Bore diameter bearing inner ring 100 mm
Centre height housing from end of shank 185 mm
Housing length total 334 mm
Outside diameter housing eye 298 mm
Width bearing inner ring 85 mm
Width housing eye 82.5 mm
Sealing type Triplelip
Sealing Seal on both sides
Material housing Steel
Attachment feature rod end shank Rectangular section, for welding
Sliding contact surface combination Steel/PTFE fabric
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Maintenancefree
Logistics
Pack gross weight 52.908 kg
eClass name Rod end (spherical plain bearing)
EAN 7316579655095
Product net weight 6.772 kg
