SKF SIJ 30 ES Rod ends

SKF SIJ 30 ES Rod ends

Product Code: SIJ 30 ES
Part/No: Eshop019587
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance, sizes 16 and larger can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.
Easy to relubricate (sizes ≥ 16)
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Slotted shank with clamping screws
Suitable for hydraulic cylinders
€596.30
Tax included
Quantity

100% Shopping Security
  On Request

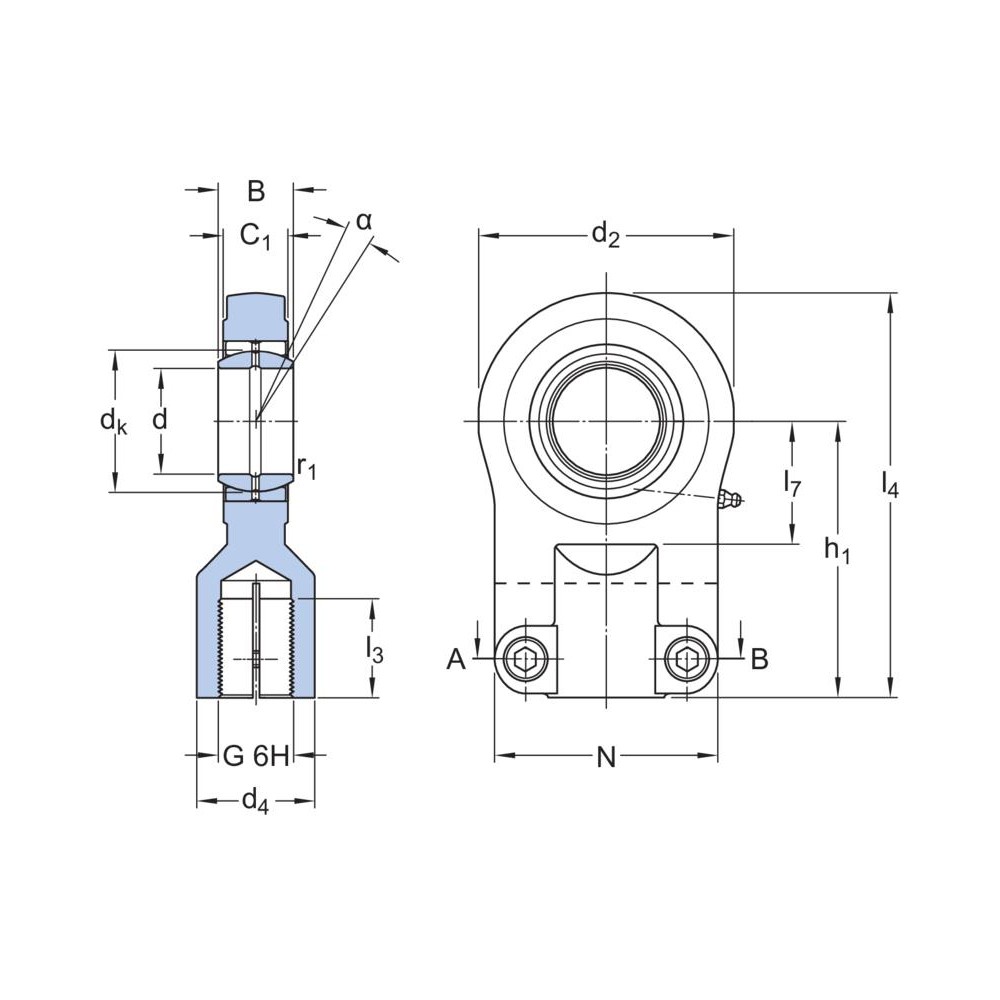

Dimensions
Performance
Basic dynamic load rating 62 kN
Basic static load rating 112 kN
Properties
Bore diameter bearing inner ring 30 mm
Centre height housing from end of shank 85 mm
Housing length total 126 mm
Outside diameter housing eye 80 mm
Thread designation M 20x1.5
Width bearing inner ring 22 mm
Width housing eye 19 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread and clamping screws
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 1201.6 g
eClass name Rod end (spherical plain bearing)
EAN 7316570948011
Product net weight 4.1 kg
