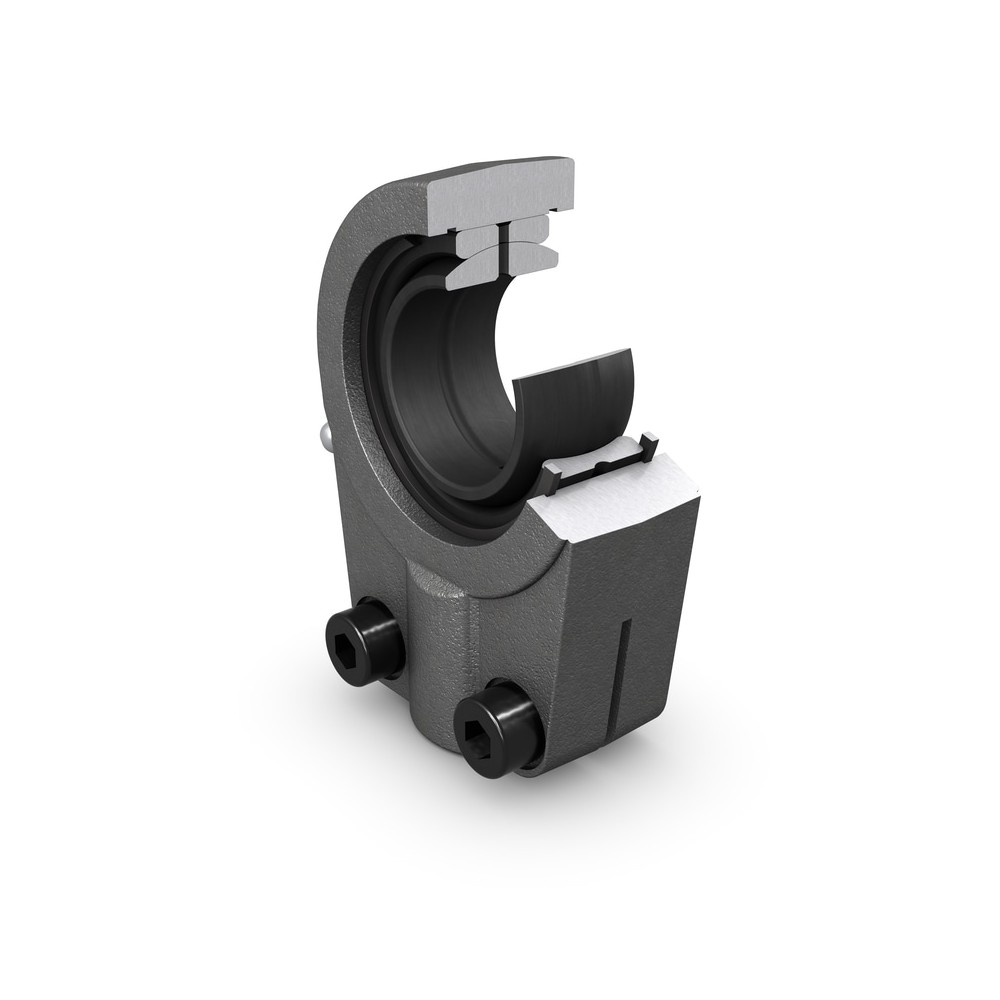

SKF SIR 35 ES Rod ends

SKF SIR 35 ES Rod ends

Product Code: SIR 35 ES
Part/No: Eshop019683
Brand: SKF
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.
Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged
€605.21
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Performance
Basic dynamic load rating 80 kN
Basic static load rating 118 kN
Properties
Bore diameter bearing inner ring 35 mm
Centre height housing from end of shank 70 mm
Housing length total 113 mm
Outside diameter housing eye 80 mm
Thread designation M 28x1.5
Width bearing inner ring 25 mm
Width housing eye 30.5 mm
Sealing Without
Material housing Steel
Attachment feature rod end shank Righthand female thread and clamping screws
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Logistics
Pack gross weight 1.228 kg
eClass name Rod end (spherical plain bearing)
EAN 7316577003652
Product net weight 461.5 g
