SKF SIR 80 ES Rod ends

SKF SIR 80 ES Rod ends

Product Code: SIR 80 ES
Part/No: Eshop019689
Brand: SKF

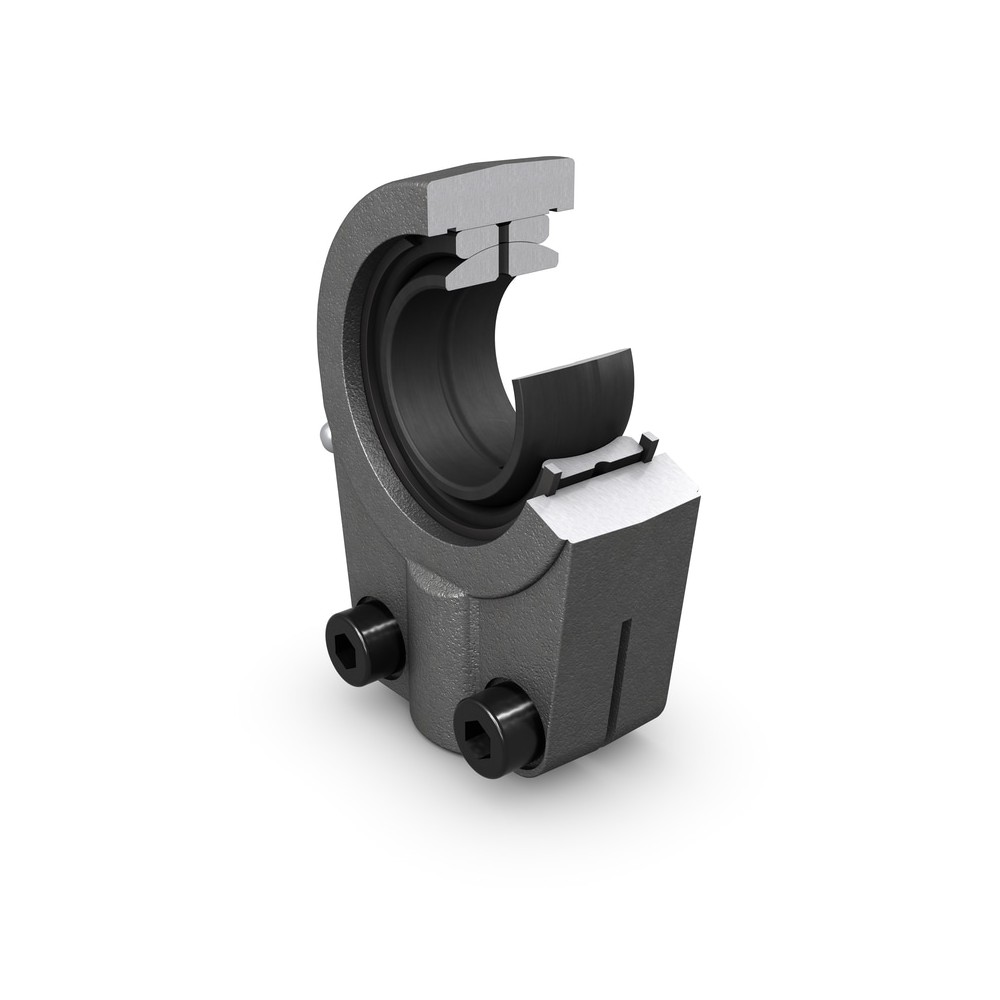

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.
Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 80 mm
Centre height housing from end of shank 170 mm
Housing length total 267.5 mm
Width bearing inner ring 55 mm
Width housing eye 60.5 mm
Diameter Head 178.5 mm
Thread G M80x2
Performance
Basic dynamic load rating 400 kN
Basic static load rating 560 kN
Properties
Sealing Without
Sliding contact surface combination Steel/steel, standard
Material inner ring Bearing steel
Material outer ring Bearing steel
Maintenance Relubrication required
Material housing Steel
Attachment feature rod end shank Right-hand female thread and clamping screws
Logistics
EAN code 07316577003690
Product net weight 13 kg
eClass name Rod end (spherical plain bearing)
