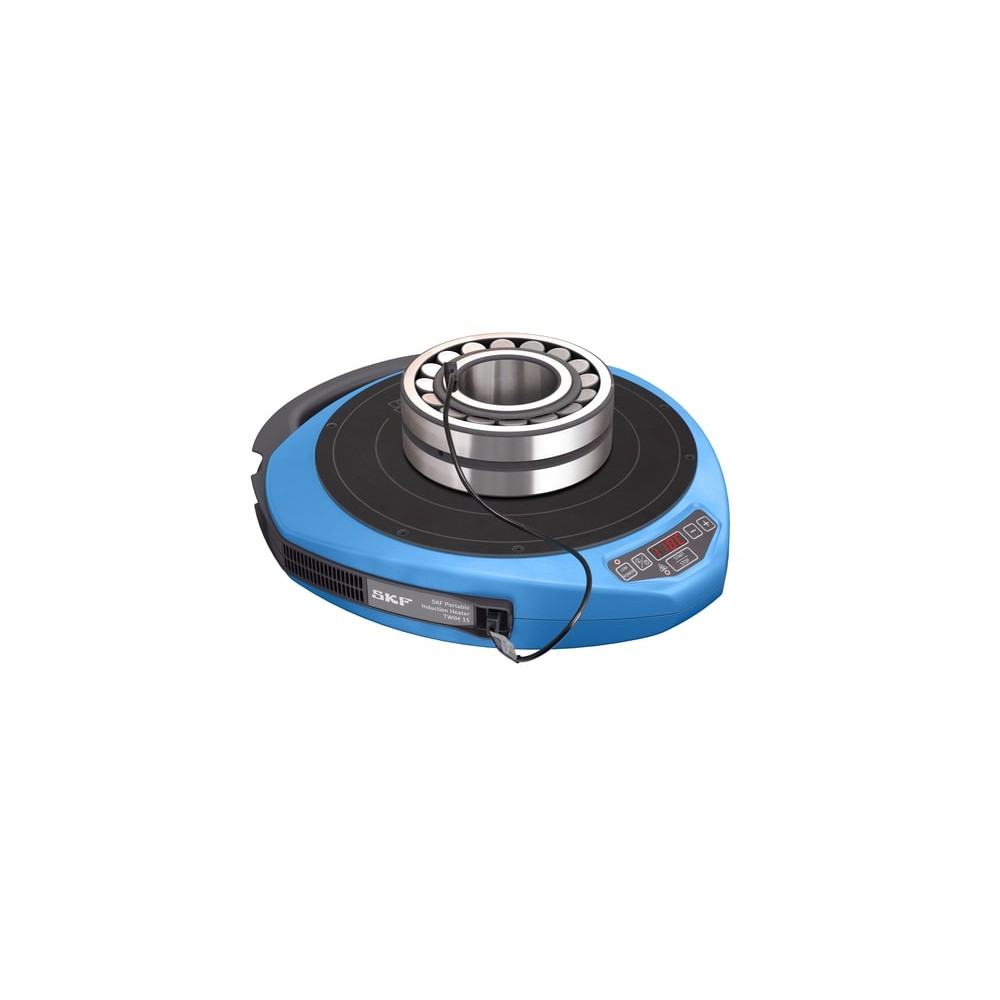

SKF TWIM 15/230V Induction heaters

Product Code: TWIM 15/230V

Part/No: 033905

Brand: SKF

Click here for more details

The TWIM 15 is a portable and robust induction heater that is designed for safe bearing heating for hot mounting. This compact heater is especially suitable for usage in the field, yet it is compact and versatile for usage on workbenches. The heater utili

Portable, lightweight, compact and robust
Smart and innovative bearing heating technology
No support yokes required
Automatic temperature control
Detection of bearing size and automatic heating adjustment

€2,816.29

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Length 243 mm

Workpiece width (max) 85 mm

Thickness 7 mm

Working length 210 mm

Outer diameter lock nut range 68 to 75 mm

Properties

Voltage 220–240 V

Content TWIM 15 heater,Power cable,Probe,Heat resistant gloves,Printed instructions for Use

Recommended applications Intended for heating up roller bearings that are mounted with an interference fit on a shaft. Other ring-shaped metallic components can also be heated.

Workpiece width (max) 85 mm

Heating time control 0.1 – 60 min

Heating time steps 0.1 min

Heating temperature control 40 – 200 °C

Heating temperature steps 1 °C

Temperature measurement Magnetic probe K-type

Colour Blue,Dark Grey

Total product weight 6.86 kg

Voltage frequency 50–60 Hz

Workpiece weight (max) 20 kg

Demagnetisation after heating (according SKF norms) 0 A/cm

Cooling fan Yes
