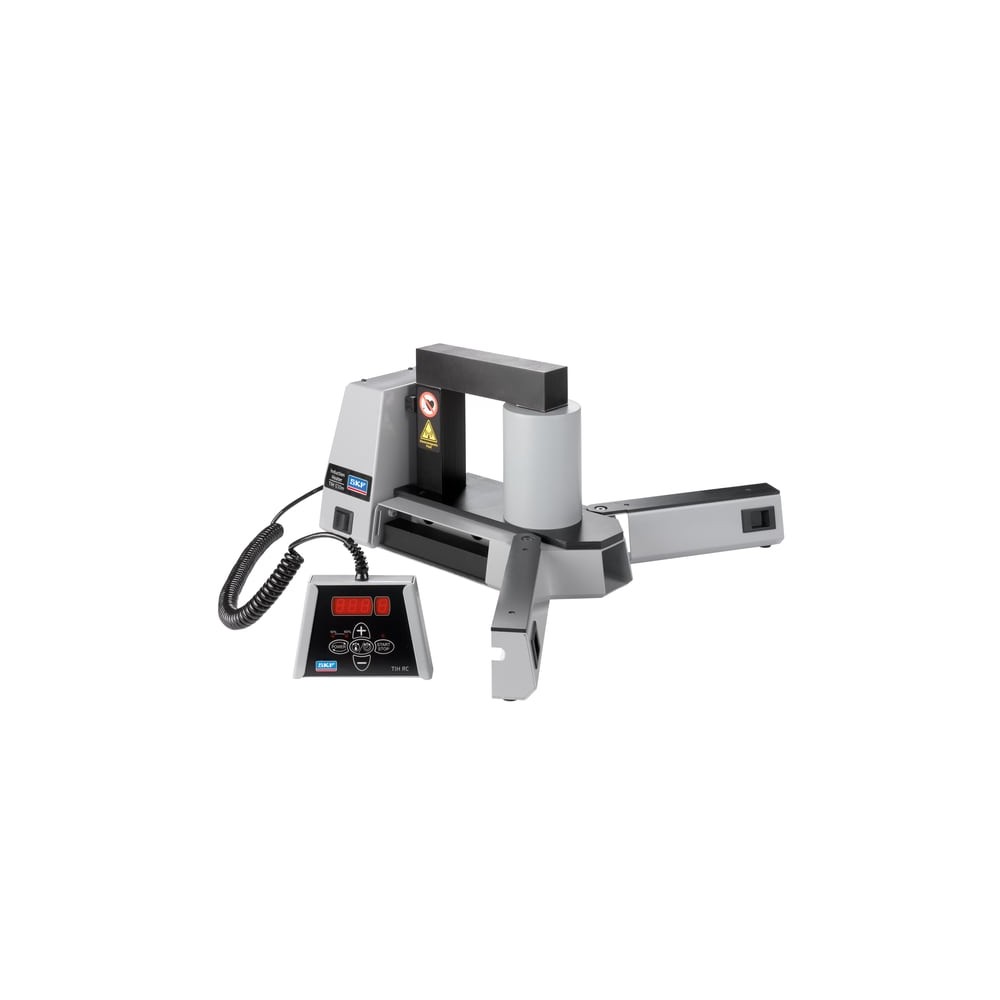

SKF TIH 030M/110V Induction heaters

SKF TIH 030M/110V Induction heaters

Product Code: TIH 030M/110V
Part/No: Eshop041769
Brand: SKF
The SKF TIH 030M is a small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied with three yokes and foldable support arms,
Easy and safe to use with automatic temperature control or time controlled heating
Automatic demagnetization reduces risk of bearing contamination
Suitable for non-bearing applications for workpieces weighing up to 20 kg
Automatic temperature
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Outer diameter lock nut 45 mm
Thickness 6 mm
Working length 210 mm
Properties
Voltage 100–120 V
Heating time control 0.1 – 60 min
Heating time steps 0.1 min
Heating temperature steps 1 °C
Temperature measurement Magnetic probe K-type
Colour Light grey, black
Total product weight 27 kg
Voltage frequency 50–60 Hz
Workpiece weight (max) 40 kg
Demagnetisation after heating (according SKF norms) < 2 A/cm
Cooling fan No
Error guiding codes Yes
Thermal overload protection Yes
Housing material Steel, Glass fibre filled polyamide
Heating temperature (max) 250 °C
Power setting 50%,100%
Thermometer mode Yes
Time mode Yes
Power consumption (max) 2 kVA
Remote control panel (wired) Yes, with LED display
Bearing support arms Yes, foldable
Yoke storage Yes, internal
Logistics
EAN code 07316572338452
Product net weight 27.17 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 27.63 kg
UNSPSC name Induction heaters
