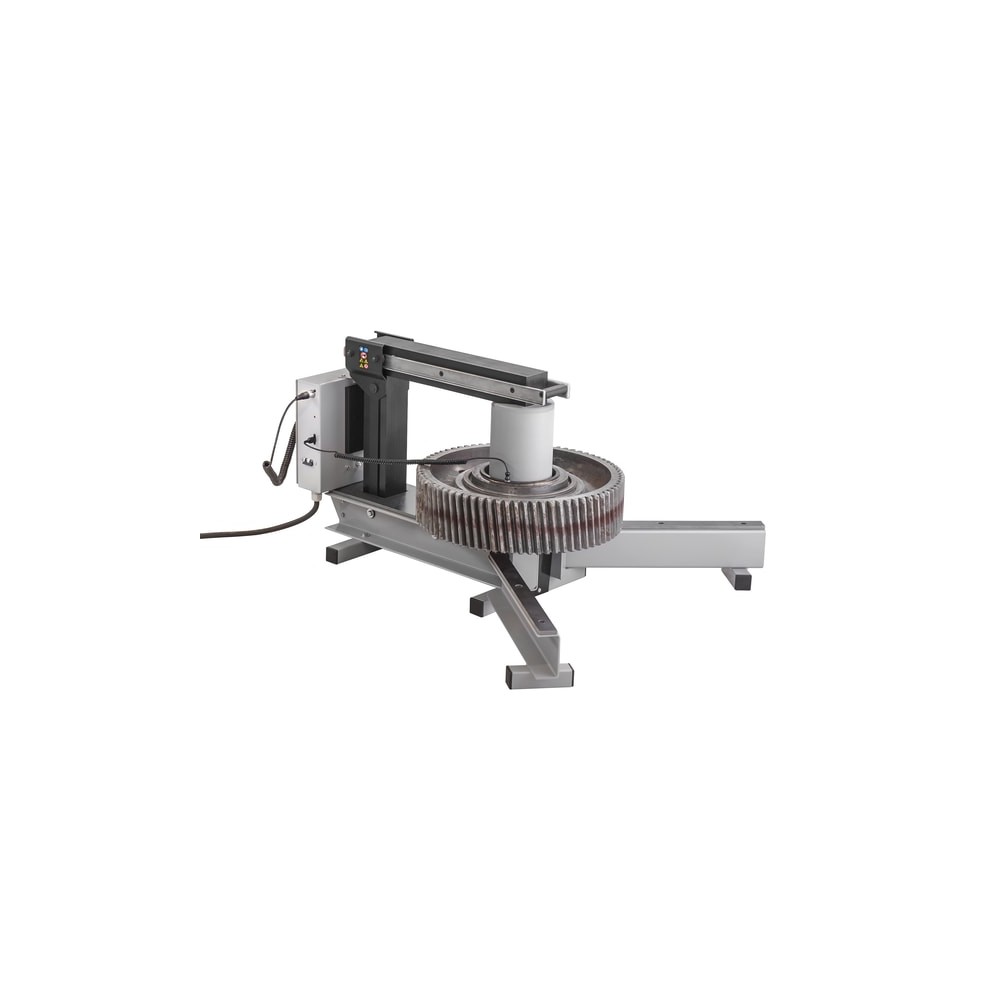

SKF TIH L77MB/MV Induction heaters

SKF TIH L77MB/MV Induction heaters

Product Code: TIH L77MB/MV
Part/No: Eshop041948
Brand: SKF
The SKF TIH L77MB is a very large induction heater and designed for the fast heating of heavy components such as rings, gears, couplings or similar ring-shaped metal workpieces. The TIH L77MB is characterised by its extended operating area that allows ver
Standard sliding yoke for ergonomic operation
Special design for fast heating of large gears, wheels, rings, couplings and similar workpieces
Easy and safe to use with automatic temperature control or time controlled heating
Automatic demagnet
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Packsize 2 kg can
Properties
Voltage 400– 460 V
Heating time control 0.1 – 60 min
Heating time steps 0.1 min
Heating temperature steps 1 °C
Temperature measurement Magnetic probe K-type
Colour Light grey, black
Total product weight 507 kg
Voltage frequency 50–60 Hz
Workpiece weight (max) 600 kg
Demagnetisation after heating (according SKF norms) < 2 A/cm
Cooling fan Yes
Error guiding codes Yes
Thermal overload protection Yes
Housing material Steel, Glass fibre filled polyamide
Heating temperature (max) 250 °C
Power setting 50%,100%
Thermometer mode Yes
Time mode Yes
Power consumption (max) 23 kVA
Remote control panel (wired) Yes, with LED display
Bearing support arms Yes, removeable
Yoke storage No
Logistics
EAN code 07316575487645
Product net weight 448.6 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 477.8 kg
UNSPSC name Induction heaters
