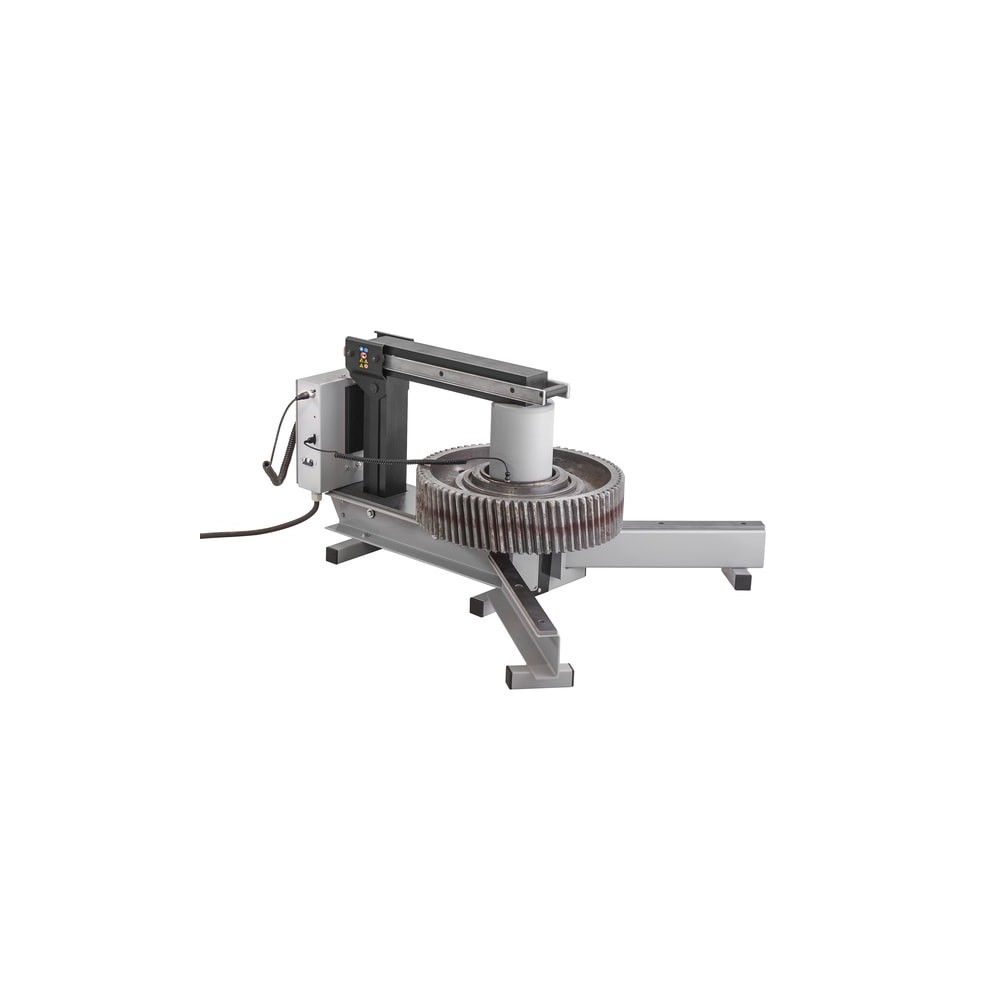

SKF TIH L44MB/MV Induction heaters

SKF TIH L44MB/MV Induction heaters

Product Code: TIH L44MB/MV
Part/No: Eshop042010
Brand: SKF
The SKF TIH L44MB is a very large induction heater and is designed for the fast heating of heavy components such as rings, gears, couplings or similar ring-shaped metal workpieces. This heater is characterized by a high heating performance for heavy solid
Standard sliding yoke for ergonomic operation
Special design for fast heating of large gears, wheels, rings, couplings and similar workpieces
Easy and safe to use with automatic temperature control or time controlled heating
Automatic demagnet
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Case dimensions (lxhxw) 360x110x260 (14.2x4.3x10.2 in.) mm
Maximum coupling height 55 mm
Properties
Voltage 400– 460 V
Heating time control 0.1 – 60 min
Heating time steps 0.1 min
Heating temperature steps 1 °C
Temperature measurement Magnetic probe K-type
Colour Light grey, black
Total product weight 365 kg
Voltage frequency 50–60 Hz
Workpiece weight (max) 600 kg
Demagnetisation after heating (according SKF norms) < 2 A/cm
Cooling fan Yes
Error guiding codes Yes
Thermal overload protection Yes
Housing material Steel, Glass fibre filled polyamide
Heating temperature (max) 250 °C
Power setting 50%,100%
Thermometer mode Yes
Time mode Yes
Power consumption (max) 23 kVA
Remote control panel (wired) Yes, with LED display
Bearing support arms Yes, removeable
Yoke storage No
Logistics
EAN code 07316576050589
Product net weight 365 kg
eClass name Product for mounting and dismounting and for maintenance
Pack gross weight 429.88 kg
UNSPSC name Induction heaters
