SKF PER.FH209-28A Insert bearings

SKF PER.FH209-28A Insert bearings

Product Code: PER.FH209-28A
Part/No: Eshop017521
Brand: SKF

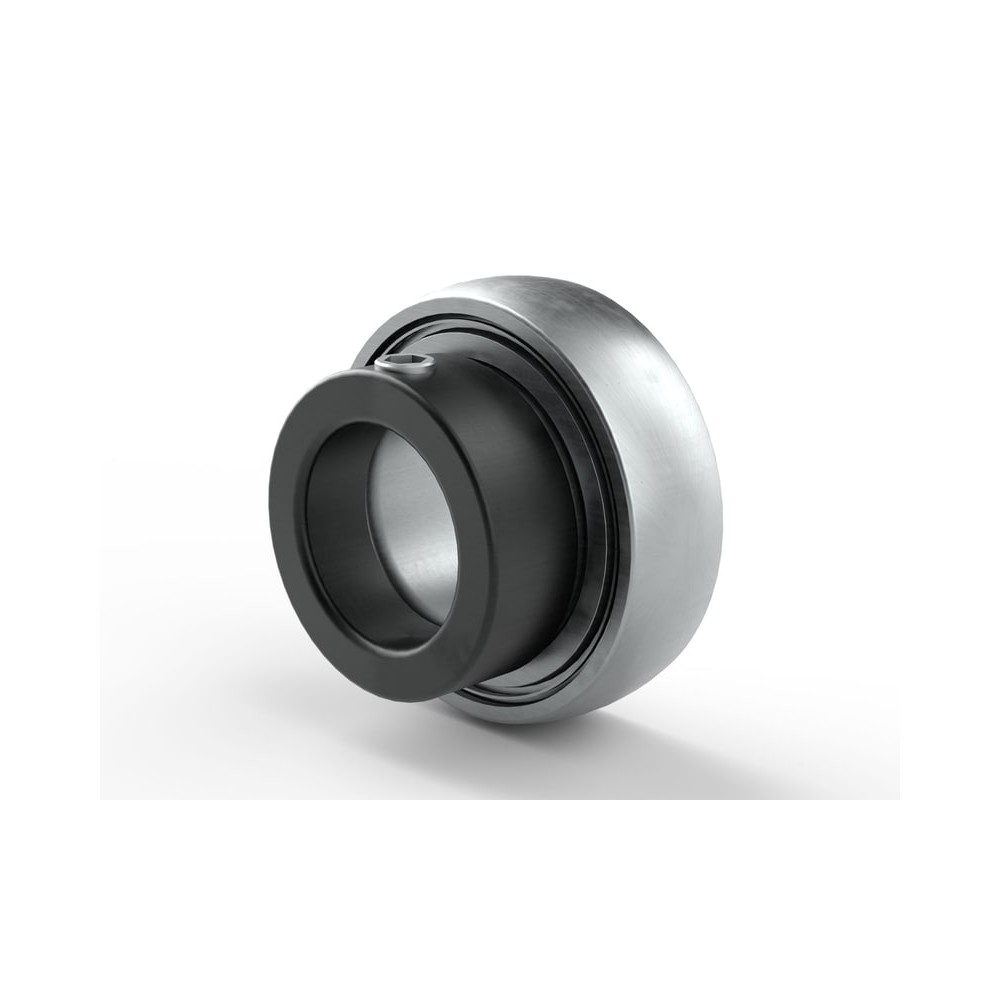

Insert bearings are based on sealed deep groove ball bearings. This variant follows PEER design. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft. Locking with an eccentric collar is suitable for applications where the direction of rotation is constant.
Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 44.45 mm
Outside diameter 85 mm
Width inner ring 30.2 mm
Width outer ring 22 mm
Performance
Basic dynamic load rating 32.6 kN
Basic static load rating 20 kN
Properties
Width total 43.7 mm
Sealing type Contact
Sealing Seal on both sides
Bore type Cylindrical
Lubricant Grease
Relubrication feature Without
Outer ring type Spherical
Retaining feature inner ring Eccentric collar
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension None (standard ring)
Logistics
Pack gross weight 0.7 kg
eClass name Mounted bearing unit (unclassified)
EAN 1200106066378
Product net weight 0.5 kg
