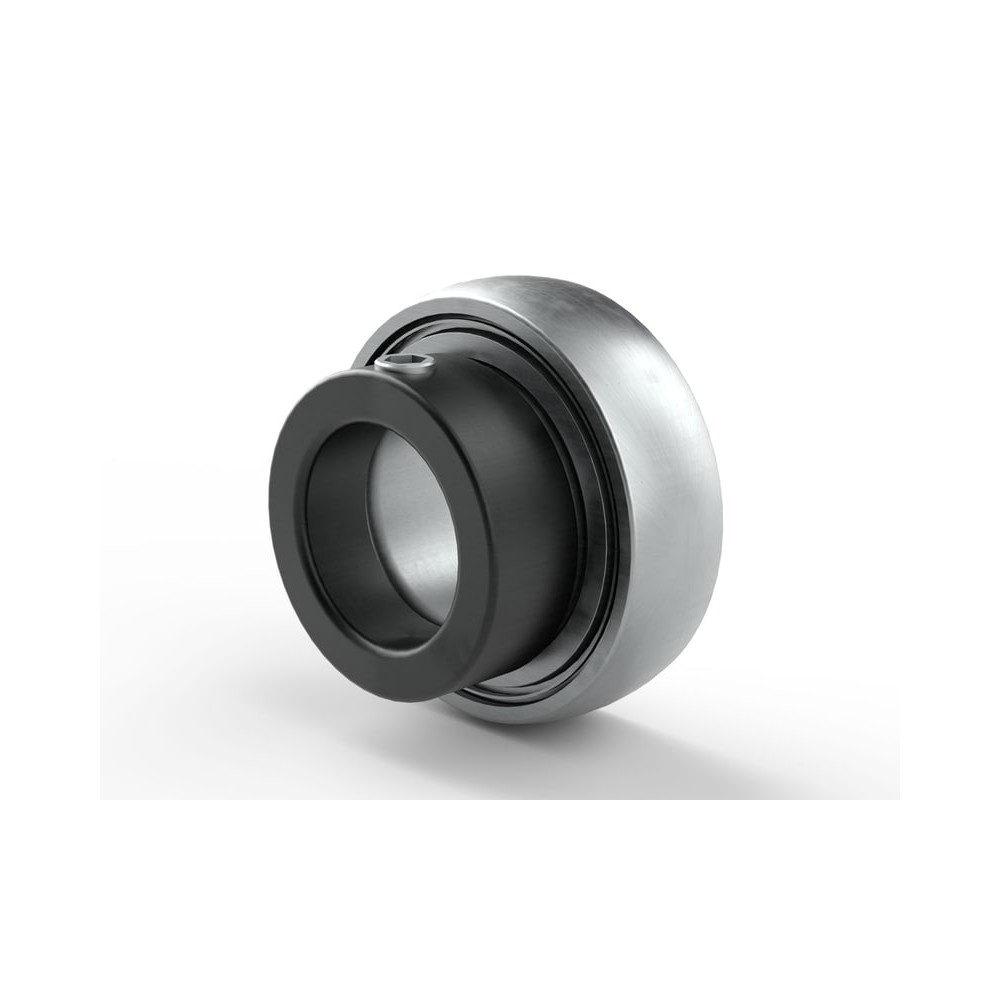

SKF PER.HC205AT-A Insert bearings

SKF PER.HC205AT-A Insert bearings

Product Code: PER.HC205AT-A
Part/No: Eshop017609
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant follows PEER design. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft. Locking with an eccentric collar is suitable for applications where the direction of rotation is constant.
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 25 mm
Outside diameter 52 mm
Width inner ring 34.8 mm
Width outer ring 15 mm
Performance
Basic dynamic load rating 14 kN
Basic static load rating 7.88 kN
Properties
Width total 44.3 mm
Sealing type Contact
Sealing Seal on both sides
Bore type Cylindrical
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Eccentric collar
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On one side
Logistics
Pack gross weight 0.45 kg
eClass name Mounted bearing unit (unclassified)
EAN 1200106080008
Product net weight 2.01 kg
