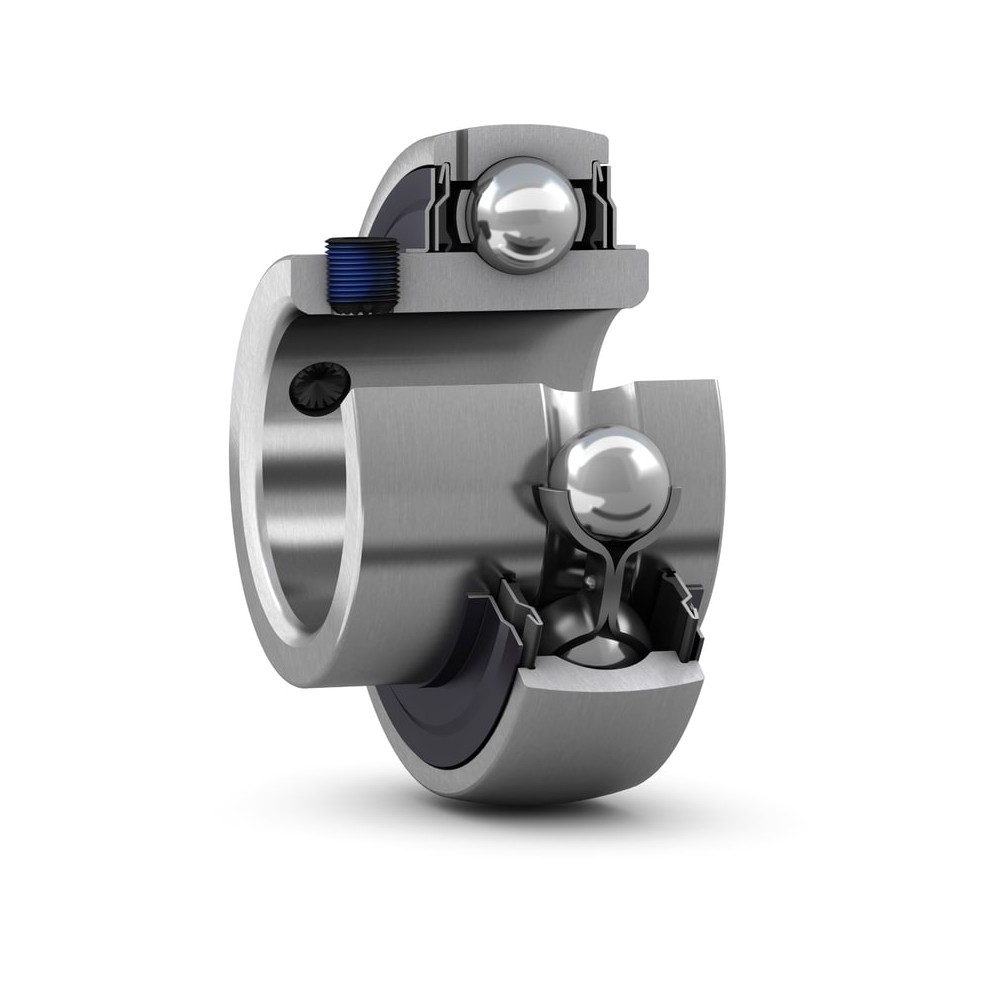

SKF UC 312 Insert bearings

SKF UC 312 Insert bearings

Product Code: UC 312
Part/No: Eshop020567
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 60 mm
Outside diameter 130 mm
Width inner ring 71 mm
Width outer ring 35 mm
Performance
Basic dynamic load rating 81.9 kN
Basic static load rating 52 kN
Limiting speed 2,900 r/min
Properties
Width total 71 mm
Note Limiting speed with shaft tolerance h6
Sealing type Contact, standard
Sealing Seal and flinger on both sides
Bore type Cylindrical
Cage Sheet metal
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Set screws
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On both sides
Logistics
Pack gross weight 2.66 kg
eClass name Flanged housing unit
EAN 7316579541299
Product net weight 1.3 kg
