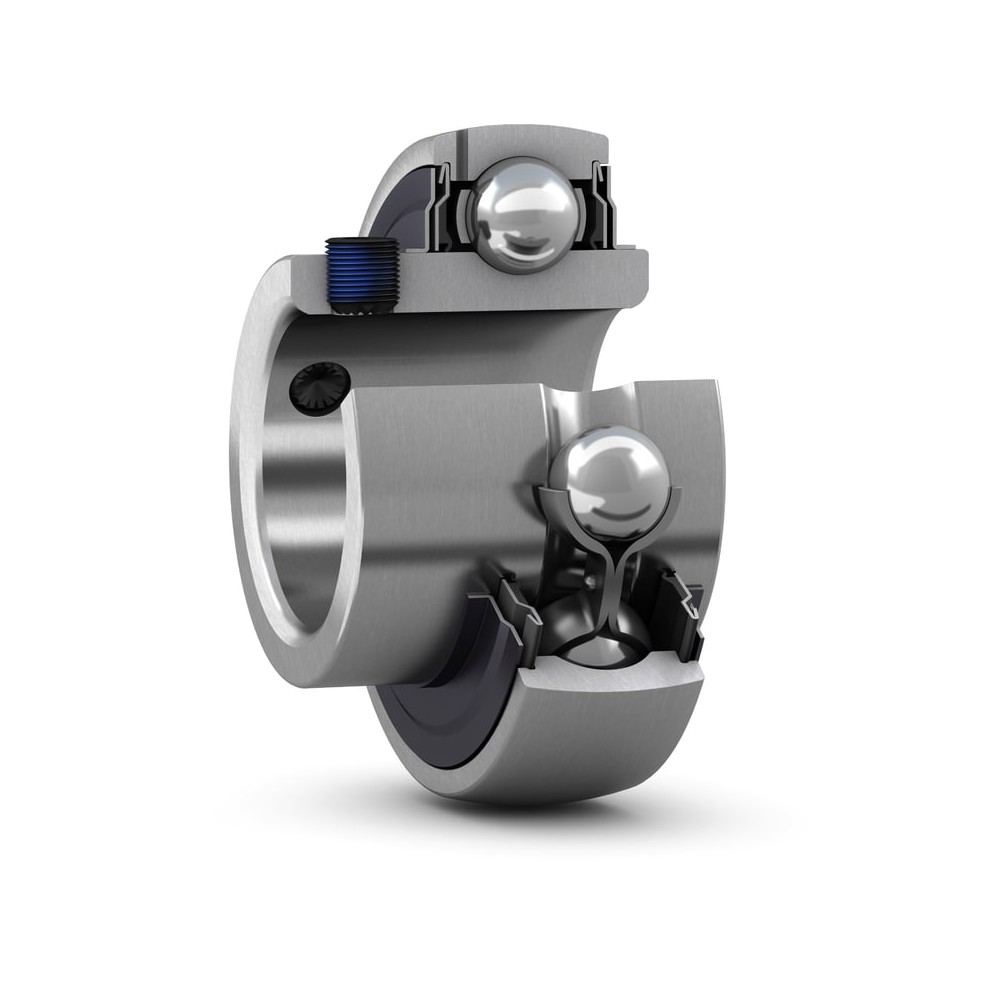

SKF UC 318 Insert bearings

SKF UC 318 Insert bearings

Product Code: UC 318
Part/No: Eshop020574
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 90 mm
Outside diameter 190 mm
Width inner ring 96 mm
Width outer ring 48 mm
Performance
Basic dynamic load rating 143 kN
Basic static load rating 108 kN
Limiting speed 1,950 r/min
Properties
Width total 96 mm
Note Limiting speed with shaft tolerance h6
Sealing type Contact, standard
Sealing Seal and flinger on both sides
Bore type Cylindrical
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Set screws
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On both sides
Logistics
Pack gross weight 7.61 kg
eClass name Flanged housing unit
EAN 7316579951326
Product net weight 4.55 kg
