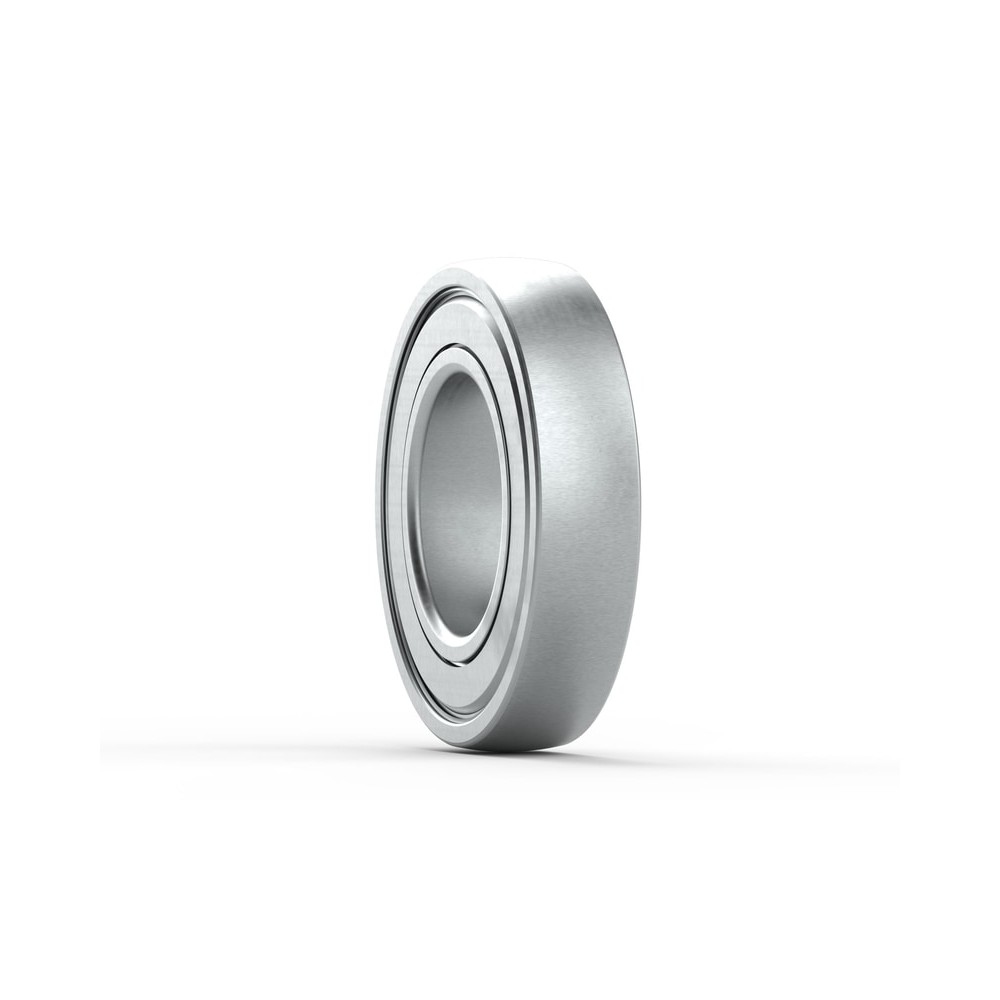

SKF XG203NPPB Insert bearings

SKF XG203NPPB Insert bearings

Product Code: XG203NPPB
Part/No: 010630
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant is designed for use in agricultural applications. It is mounted on the shaft with an interference fit. This provides smooth running and enables high speeds.
Smooth running
Can accommodate heavy axial loads
Sealed on both sides
€0.00
(*The price will be determined)
Tax included
mail_outlineSEND REQUEST
SKF XG203NPPB Insert bearings

SKF XG203NPPB Insert bearings

Product Code: XG203NPPB

Part/No: 010630

Brand: SKF

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 17 mm
Outside diameter 40 mm
Width inner ring 12 mm
Width outer ring 12 mm
Width total 12 mm
Performance
Basic dynamic load rating 9.57 kN
Basic static load rating 0.479 kN
Limiting speed 7.200 r/min
Properties
Sealing Seal on both sides
Bore type Cylindrical
Lubricant Grease
Relubrication feature Without
Coating Without
Sealing type Contact
Material bearing Bearing steel
Outer ring type Spherical
Retaining feature inner ring Interference fit
Rolling elements Balls
Rubber seating ring Without
Inner ring extension None (standard ring)
Logistics
EAN code 07316579849838
Product net weight 0.07 kg
eClass name Mounted bearing unit (unclassified)
