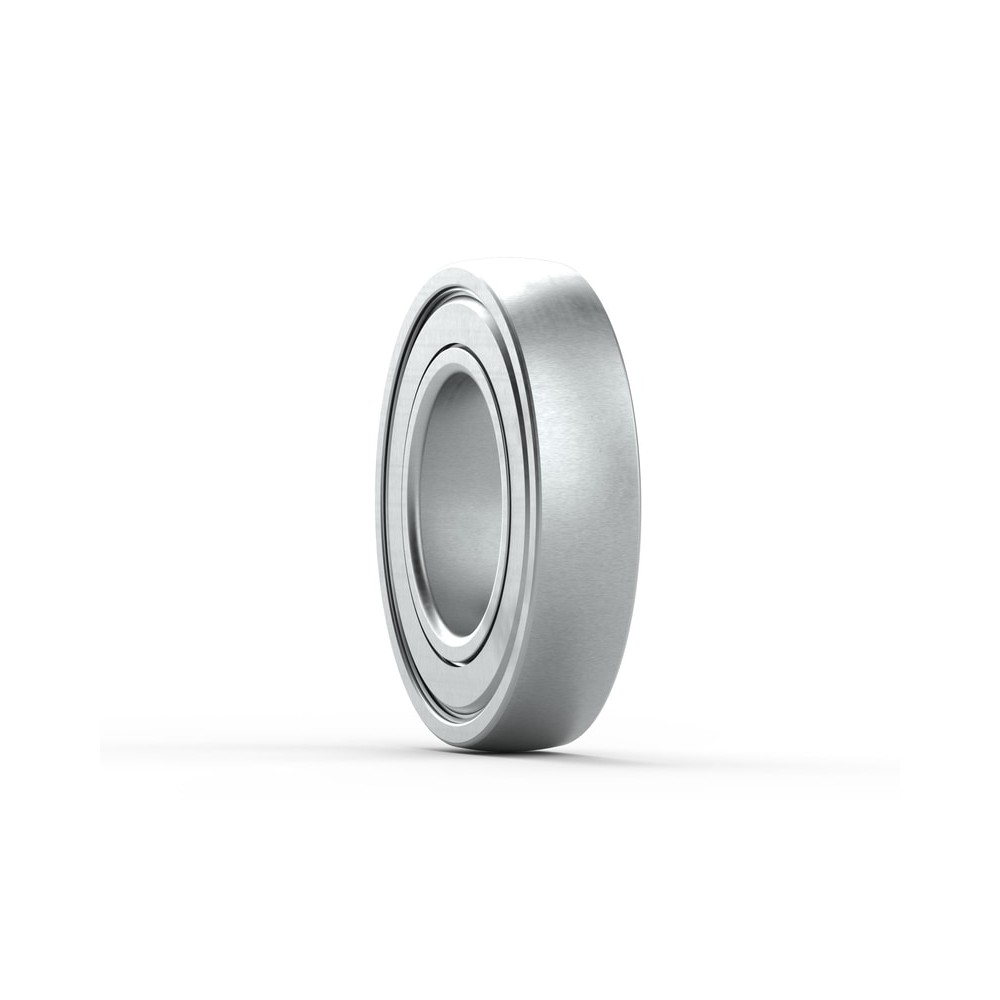

SKF XG204NPPB Insert bearings

SKF XG204NPPB Insert bearings

Product Code: XG204NPPB
Part/No: 010631
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant is designed for use in agricultural applications. It is mounted on the shaft with an interference fit. This provides smooth running and enables high speeds.
Smooth running
Can accommodate heavy axial loads
Sealed on both sides
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 20 mm
Outside diameter 47 mm
Width inner ring 14 mm
Width outer ring 14 mm
Performance
Basic dynamic load rating 12.84 kN
Basic static load rating 6.65 kN
Limiting speed 6,500 r/min
Properties
Width total 14 mm
Sealing type Contact, Agri narrow single lip
Sealing Seal on both sides
Bore type Cylindrical
Lubricant Grease
Relubrication feature Without
Outer ring type Spherical
Retaining feature inner ring Interference fit
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension None (standard ring)
Logistics
Pack gross weight 0.111 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316579849845
Product net weight 1022.5 g
