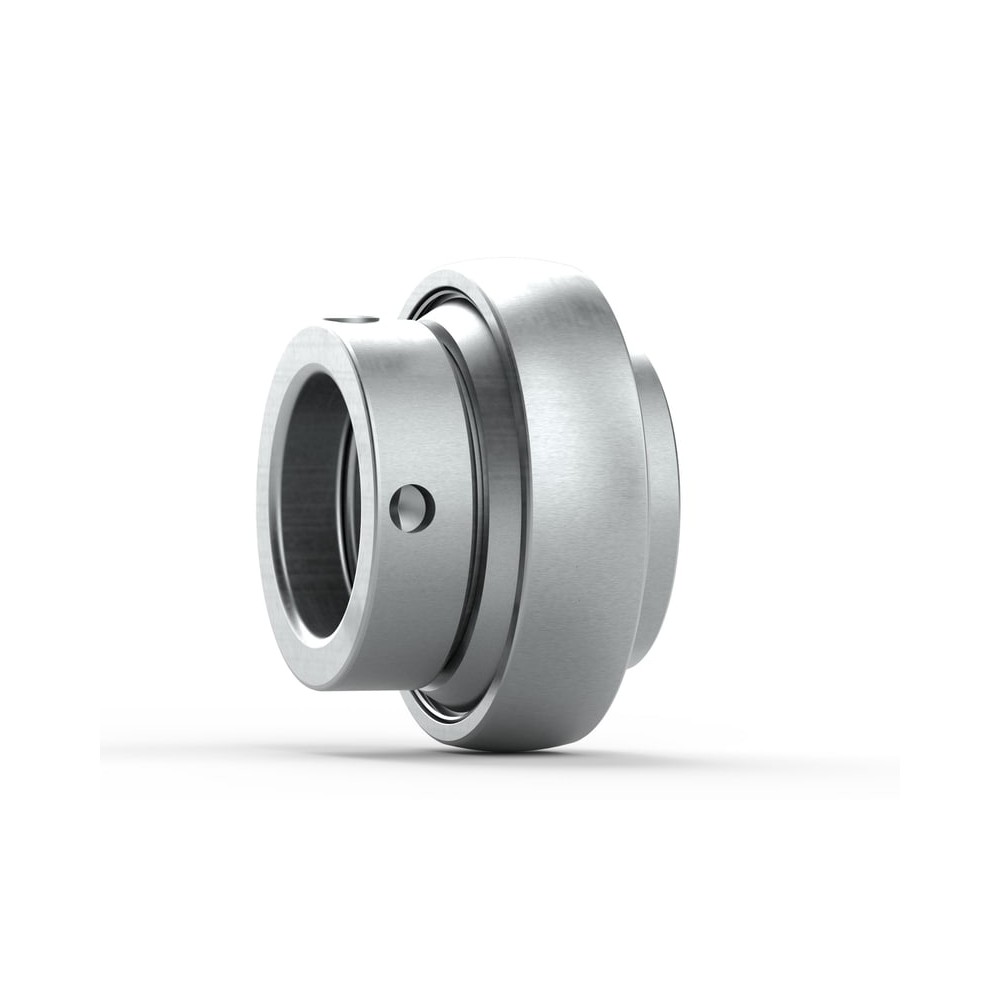

SKF XGGE40KTTB Insert bearings

SKF XGGE40KTTB Insert bearings

Product Code: XGGE40KTTB
Part/No: 010640
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant is designed for use in agricultural applications. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft. Locking with an eccentric collar is suitable for applications where the direction of rotation is constant.
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 40 mm
Outside diameter 80 mm
Width inner ring 42.8 mm
Width outer ring 22 mm
Performance
Basic dynamic load rating 32.6 kN
Basic static load rating 20 kN
Limiting speed 3,750 r/min
Properties
Width total 56.3 mm
Sealing type Contact, Agri triplelip
Sealing Seal on both sides
Bore type Cylindrical
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Eccentric collar
Rolling elements Balls
Rubber seating ring Without
Coating Zinccoated rings
Material bearing Bearing steel
Logistics
Pack gross weight 0.773 kg
eClass name Mounted bearing unit (unclassified)
EAN 7316579941693
Product net weight 0.59 kg
