SKF YAR 206-2LPW/SS Insert bearings

SKF YAR 206-2LPW/SS Insert bearings

Product Code: YAR 206-2LPW/SS
Part/No: Eshop021140
Brand: SKF

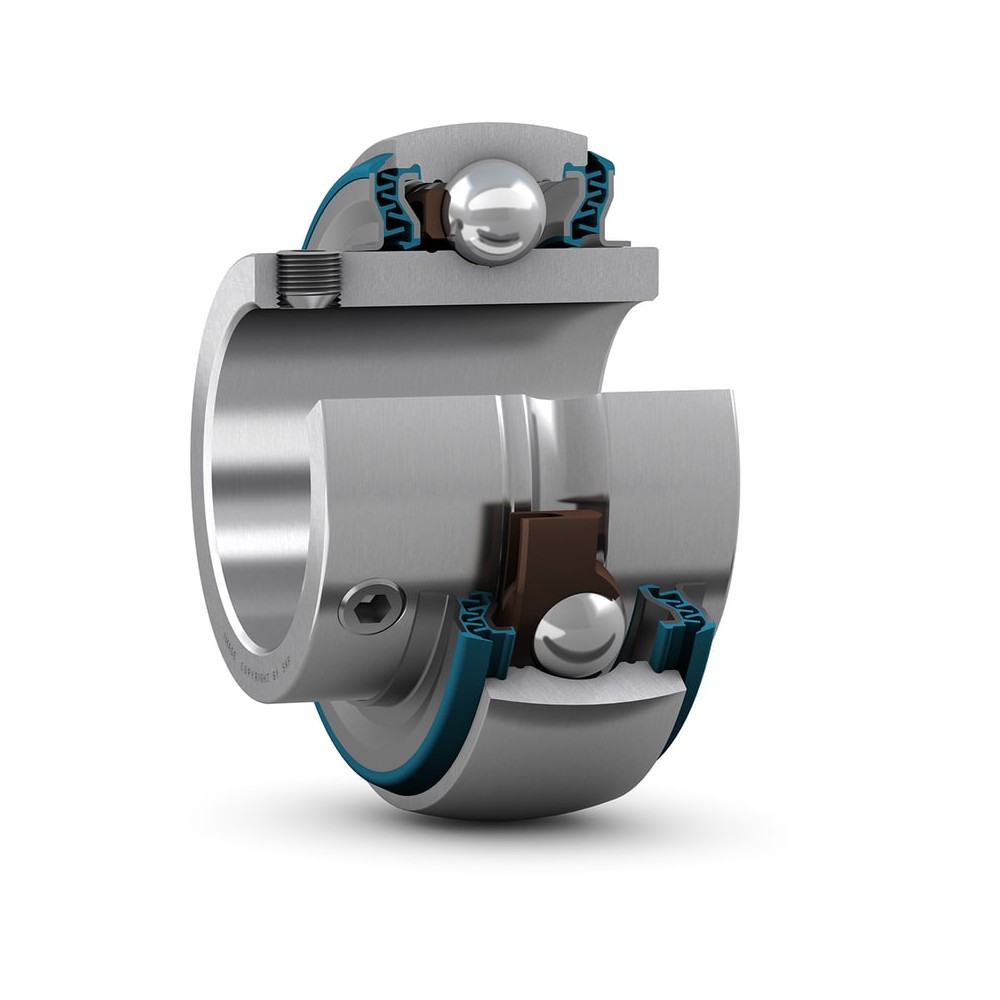

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.
Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels
€330.35
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width inner ring 38.1 mm
Width outer ring 18 mm
Performance
Basic dynamic load rating 16.3 kN
Basic static load rating 11.2 kN
Limiting speed 3,800 r/min
Properties
Width total 38.1 mm
Note Limiting speed with shaft tolerance h6
Sealing type Contact, gutter
Sealing Seal and flinger on both sides
Bore type Cylindrical
Cage Nonmetallic
Lubricant Grease
Relubrication feature Without
Outer ring type Spherical
Retaining feature inner ring Set screws
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Stainless steel
Inner ring extension On both sides
Logistics
Pack gross weight 313 g
eClass name Bearing with spherical outside surface
EAN 7316577848536
Product net weight 0.295 kg
