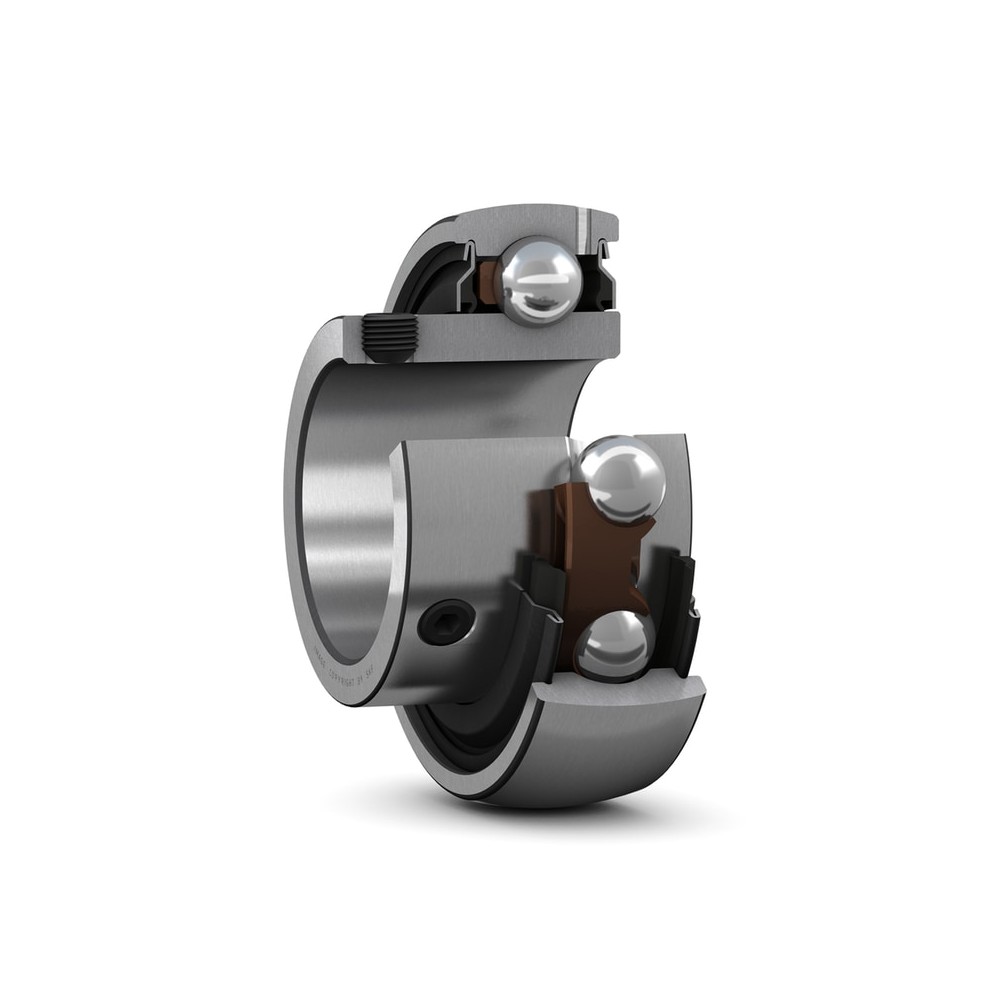

SKF YAT 206-103 Insert bearings

SKF YAT 206-103 Insert bearings

Product Code: YAT 206-103
Part/No: Eshop021228
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 301625 mm
Outside diameter 62 mm
Width inner ring 30.2 mm
Width outer ring 18 mm
Performance
Basic dynamic load rating 19.5 kN
Basic static load rating 11.2 kN
Limiting speed 6,300 r/min
Properties
Width total 30.2 mm
Note Limiting speed with shaft tolerance h6
Sealing type Contact, standard
Sealing Seal on both sides
Bore type Cylindrical
Cage Nonmetallic
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Set screws
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On one side
Logistics
Pack gross weight 0.265 kg
eClass name Bearing with spherical outside surface
EAN 7316571504605
Product net weight 0.156 kg
