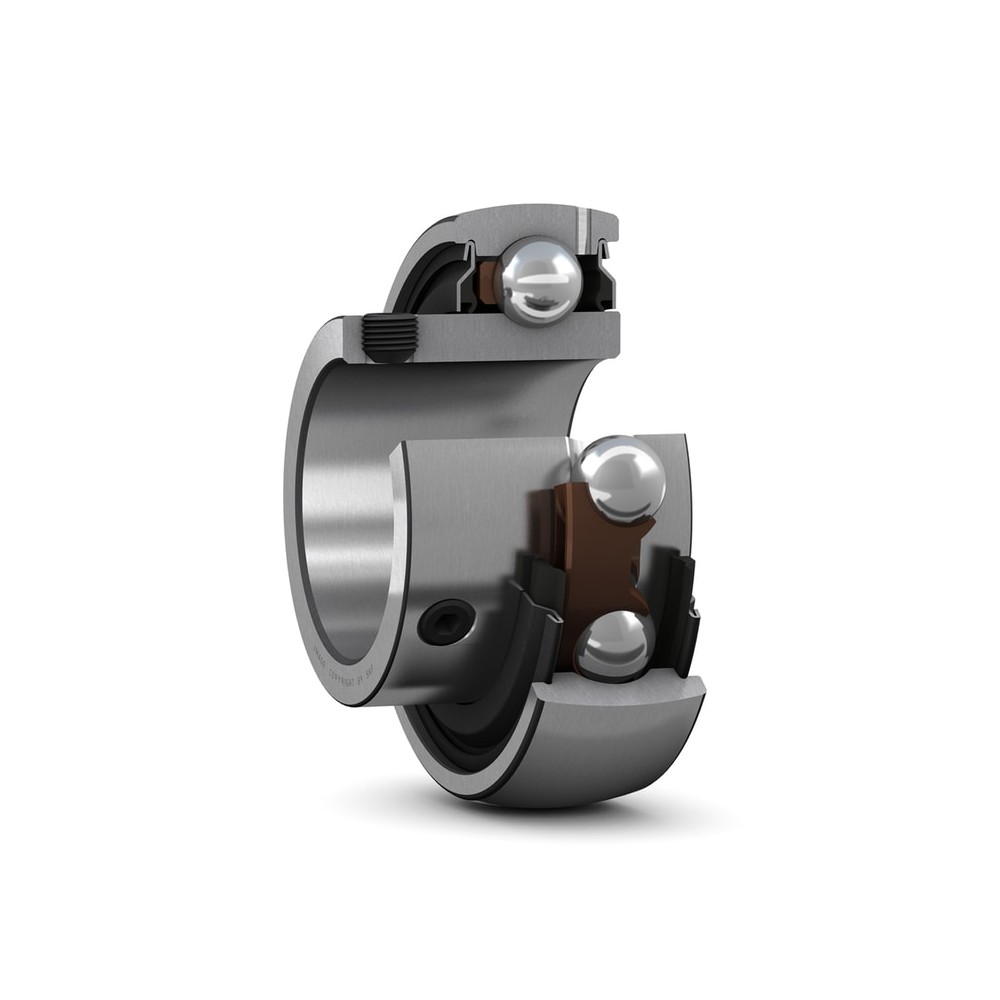

SKF YAT 207 Insert bearings

SKF YAT 207 Insert bearings

Product Code: YAT 207
Part/No: 006658
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€76.62
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 35 mm
Outside diameter 72 mm
Width inner ring 33 mm
Width outer ring 19 mm
Performance
Basic dynamic load rating 25.5 kN
Basic static load rating 15.3 kN
Limiting speed 5,300 r/min
Properties
Width total 33 mm
Note Limiting speed with shaft tolerance h6
Sealing type Contact, standard
Sealing Seal on both sides
Bore type Cylindrical
Cage Nonmetallic
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Set screws
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On one side
Logistics
Pack gross weight 0.395 kg
eClass name Bearing with spherical outside surface
EAN 7316570100501
Product net weight 0.252 kg
