SKF YET 207-104 WU/VT357 Insert bearings

SKF YET 207-104 WU/VT357 Insert bearings

Product Code: YET 207-104 WU/VT357
Part/No: Eshop021290
Brand: SKF

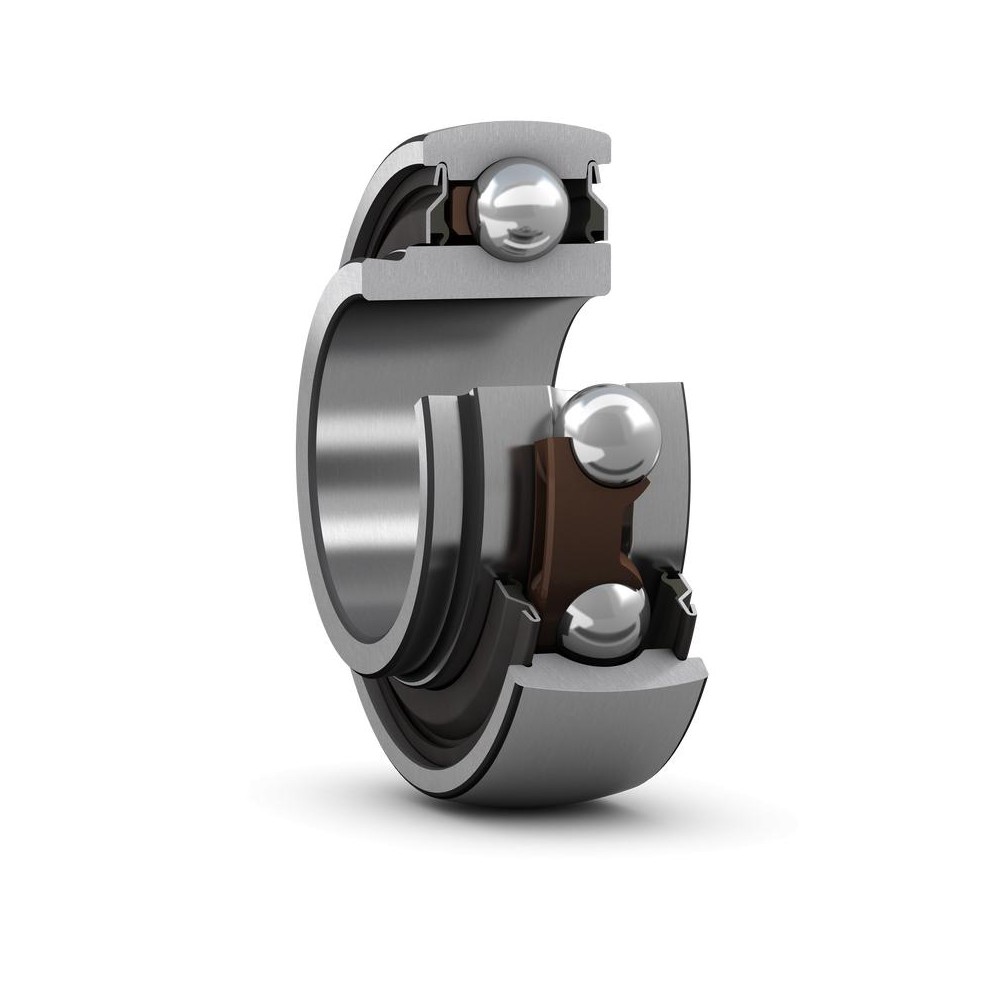

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 31.75 mm
Outside diameter 72 mm
Width inner ring 25.4 mm
Width outer ring 19 mm
Performance
Basic dynamic load rating 25.5 kN
Basic static load rating 15.3 kN
Limiting speed 5,300 r/min
Properties
Width total 25.4 mm
Note Limiting speed with shaft tolerance h6
Sealing type Contact, standard
Sealing Seal on both sides
Bore type Cylindrical
Cage Nonmetallic
Lubricant Grease
Relubrication feature Without
Outer ring type Spherical
Retaining feature inner ring Eccentric collar
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On one side
Logistics
Pack gross weight 0.381 kg
eClass name Bearing with spherical outside surface
EAN 7316577166623
Product net weight 0.483 kg
