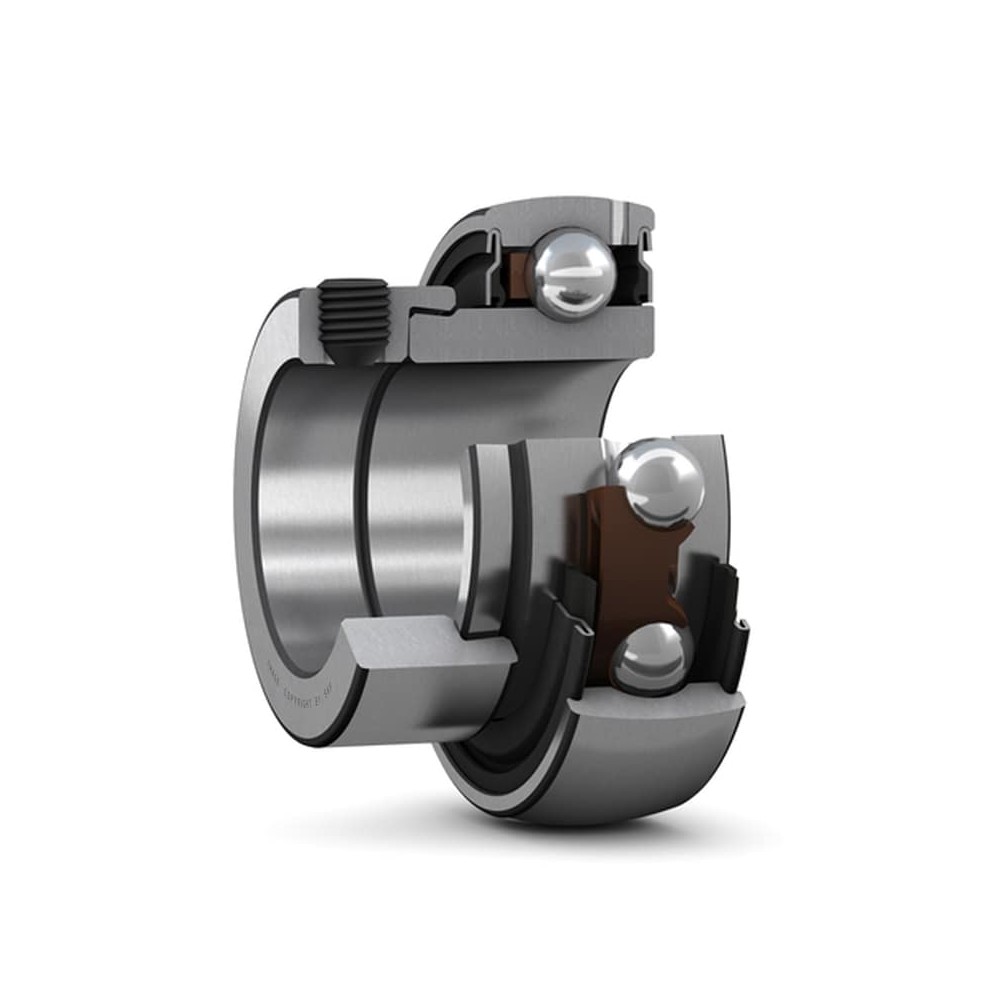

SKF YET 209/VP076 Insert bearings

SKF YET 209/VP076 Insert bearings

Product Code: YET 209/VP076
Part/No: Eshop021296
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Bore diameter 45 mm
Outside diameter 85 mm
Width inner ring 30.2 mm
Width outer ring 22 mm
Performance
Basic dynamic load rating 33.2 kN
Basic static load rating 21.6 kN
Limiting speed 5,000 r/min
Properties
Width total 43.7 mm
Note Limiting speed with shaft tolerance h6
Sealing type Noncontact
Sealing Shield on both sides
Bore type Cylindrical
Cage Nonmetallic
Lubricant Grease
Relubrication feature With
Outer ring type Spherical
Retaining feature inner ring Eccentric collar
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension On one side
Logistics
Pack gross weight 679.4 g
eClass name Bearing with spherical outside surface
EAN 7316579358835
Product net weight 0.652 kg
