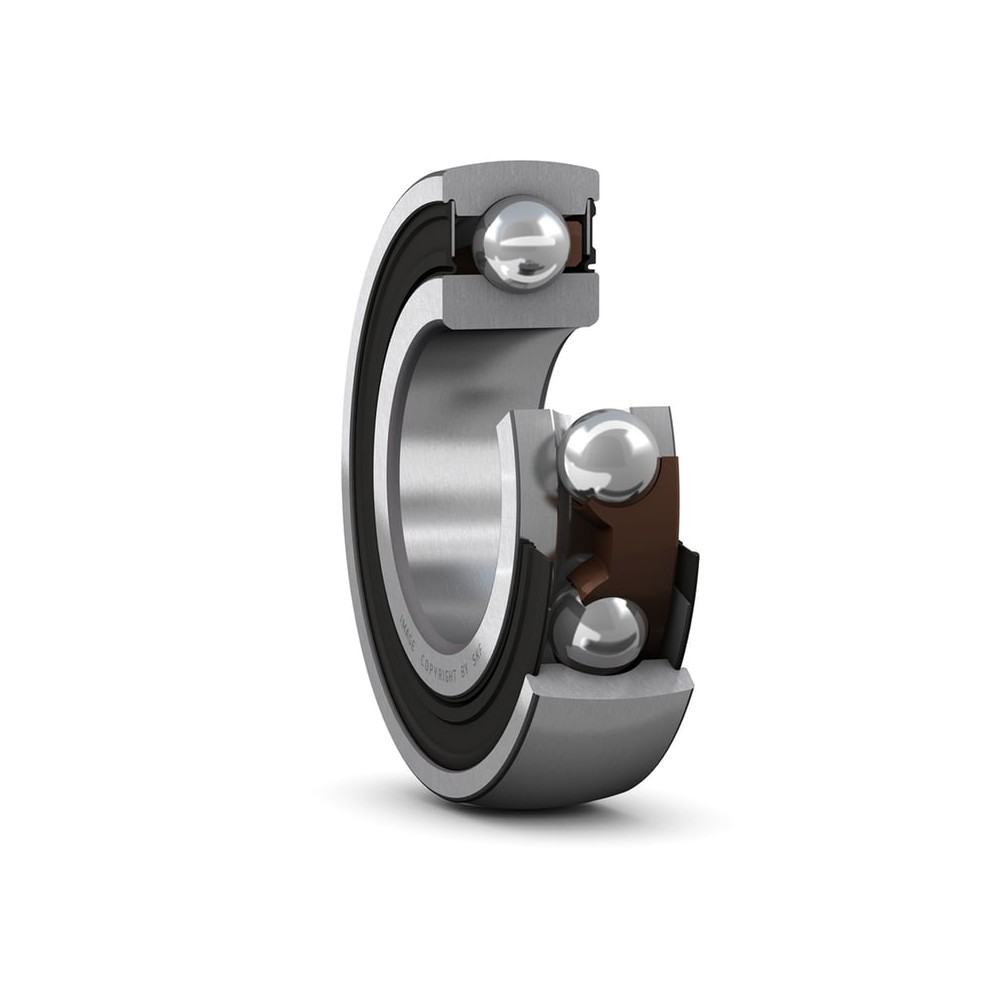

SKF 1726206-2RS1 Insert bearings

SKF 1726206-2RS1 Insert bearings

Product Code: 1726206-2RS1
Part/No: 037626
Brand: SKF
Insert bearings are based on sealed deep groove ball bearings. These insert bearings are suitable for applications where smooth running is a key operational parameter. It can accommodate heavier axial loads than any other insert bearing. The bearings are sealed on both sides, made of sheet steel reinforced NBR, and are fitted in a recess on the outer ring and ride against the inner ring shoulder to act as contact seals.
Smooth running
Can accommodate havy axial loads
Sealed on both sides
€51.91
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width inner ring 16 mm
Width outer ring 16 mm
Performance
Basic dynamic load rating 19.5 kN
Basic static load rating 11.2 kN
Limiting speed 7,500 r/min
Properties
Width total 16 mm
Sealing type Contact, RS1
Sealing Seal on both sides
Bore type Cylindrical
Cage Nonmetallic
Lubricant Grease
Relubrication feature Without
Outer ring type Spherical
Retaining feature inner ring Interference fit
Rolling elements Balls
Rubber seating ring Without
Coating Without
Material bearing Bearing steel
Inner ring extension None (standard ring)
Logistics
Pack gross weight 0.195 kg
eClass name Bearing with spherical outside surface
EAN 7316576620201
Product net weight 0.188 kg
