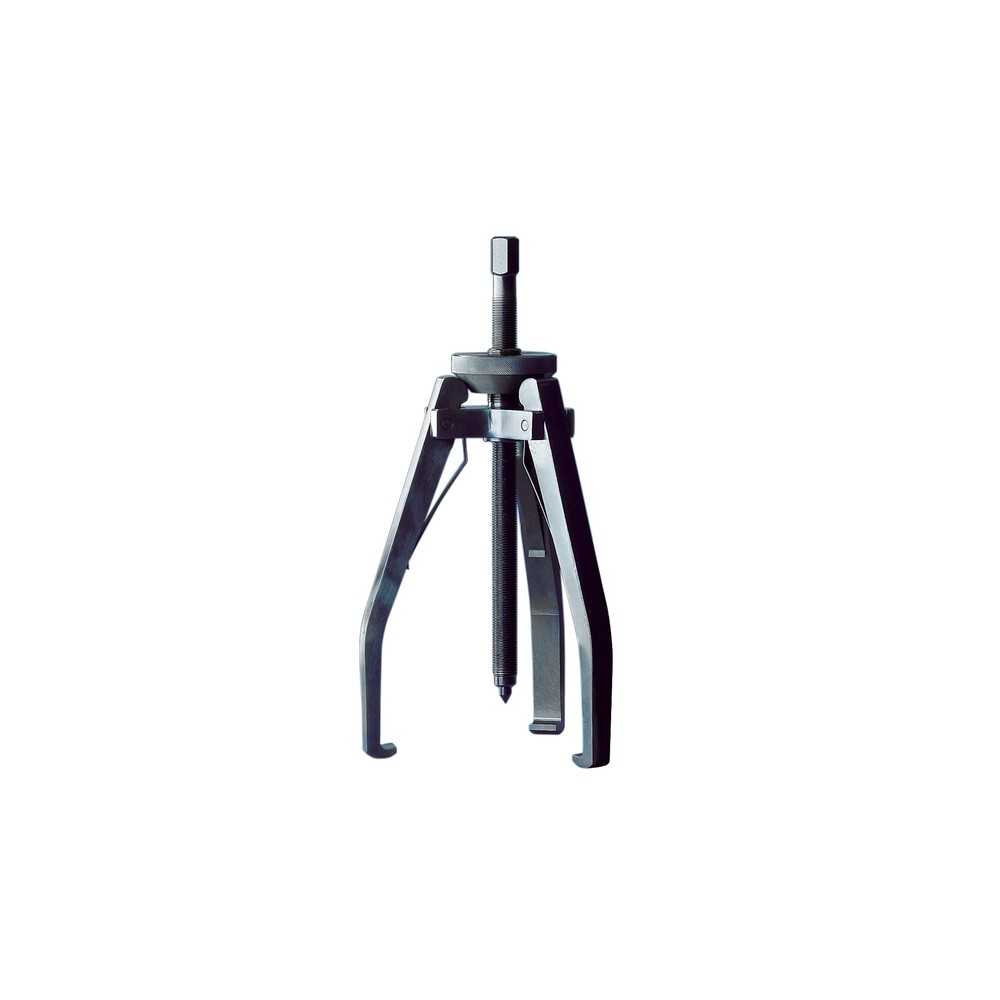

SKF TMMP 3X230 Jaw pullers

Product Code: TMMP 3X230

Part/No: 007253

Brand: SKF

Click here for more details

One of the most common ways to dismount small to medium size bearings is to use a mechanical puller. The SKF TMMP 3X230 is a three arm puller for small to medium sized bearings. It helps the user to safeguard against damage to the bearing or to the bearing seating during dismounting. The SKF Standard Jaw Pullers TMMP series allow for easy and fast dismouting jobs and safe puller operation.

Cone system for automatic centring and secure positioning of arms
Strong springs keep arms apart for easy operation
Hardned, high quality carbon steel

€433.94

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Product weight 5.5 kg

Performance

Properties

Material Alloy engineering steels, hardened and tempered

Coating Chemical blackened

Effective arm length 210 mm

Claw height 9 mm

Claw length 13 mm

Claw width 24 mm

Width of grip external 40 – 230 mm

Colour Black

Suitable for bearing type (s) All

Content 1x Puller TMMP 3x230;1x Printed instructions for use

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Number of arms 3

Pulling force (max) 34 kN

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Special features Cone-system for automatic centring and locking of the arms

Spindle torque (max) 90 N·m

Logistics

Pack gross weight 6.15 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316576621888

Product net weight 5.8 kg

eClass code 23-05-19-01
