SKF TMHC 110E Jaw pullers

Product Code: TMHC 110E

Part/No: 033843

Brand: SKF

Click here for more details

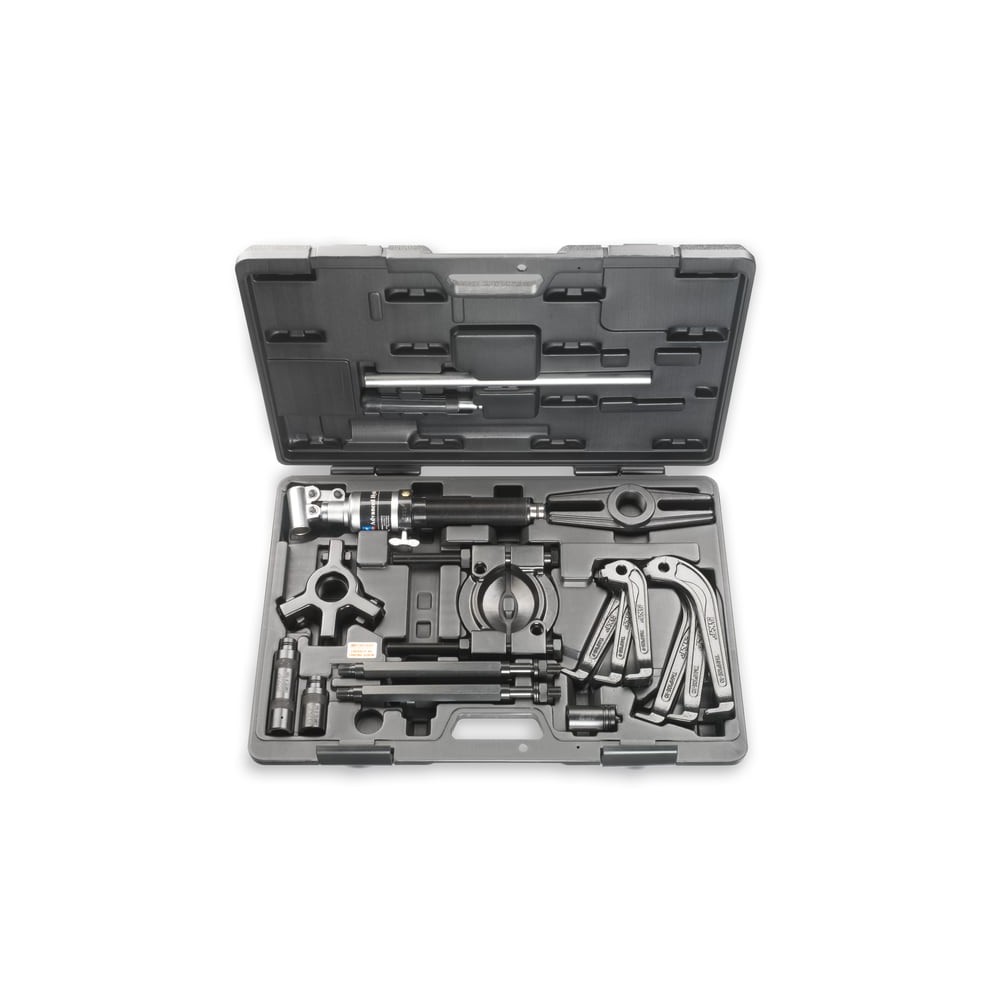

The TMHC 110E is a hydraulic puller kit that comnbines a jaw puller and a strong back puller. The kit includes two arm sets with different lengths that can be used in 2-arm or 3-arm configuration and a back puller with a maximum reach of 250 mm (9.8 in.). The hydraulic spindle with safety valve enables safe and effortless dismounting for various bearings and components. The spring-loaded centre piece and self-locking puller arms further support safe and easy puller operation.

Versatile kit with two different arm lengths usable in 2-arm or 3-arm configuration and strong back puller
Effortless dismounting with hydraulic spindle
Self-locking arms minimise risks of slippage under load
Spring-loaded centre point allows easy puller centring
Supplied with two hydraulic spindle extension pieces to allow quick adaptation to required pulling length
Hydraulic spindle is equipped with safety valve to prevent puller overload

€1,301.94

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Dimensions

Product weight 13.5 kg

Performance

Properties

Material Alloy engineering steels, hardened and tempered

Coating Black phosphated, Hydraulic spindle with trivalent chromium parts

Case dimensions (lxhxw) 580 x 410 x 70 mm

Claw height 8 mm

Claw length 15 mm

Claw width 25 mm

Hydraulic spindle, piston stroke 80 mm

Separator height 25 mm

Puller adaptor thread UN 1.5 x 16 tpi

Colour Black/Silver

Suitable for bearing type (s) All

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) No

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) 2 No

Dismounting force generation Hydraulic spindle,TMHS 100

Suitable for workpiece dismounting from a Housing No

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes

Total number of arms in kit 2 sets of 3

Pulling force (max) 100 kN

Recommended applications For dismounting of bearings, gears, pulleys and other industrial ring shaped components from shafts in industrial, construction and agricultural applications. Option to choose from jaw puller or separator depending on the space surrounding the component.

Relative humidity max 75%

Recommended storage temperature 5 – 40 °C

Logistics

Pack gross weight 15 kg

eClass name Product for mounting and dismounting and for maintenance

UNSPSC code 27-11-17-12

EAN code 07316572298442

Product net weight 12.6 kg

eClass code 23-05-19-01
