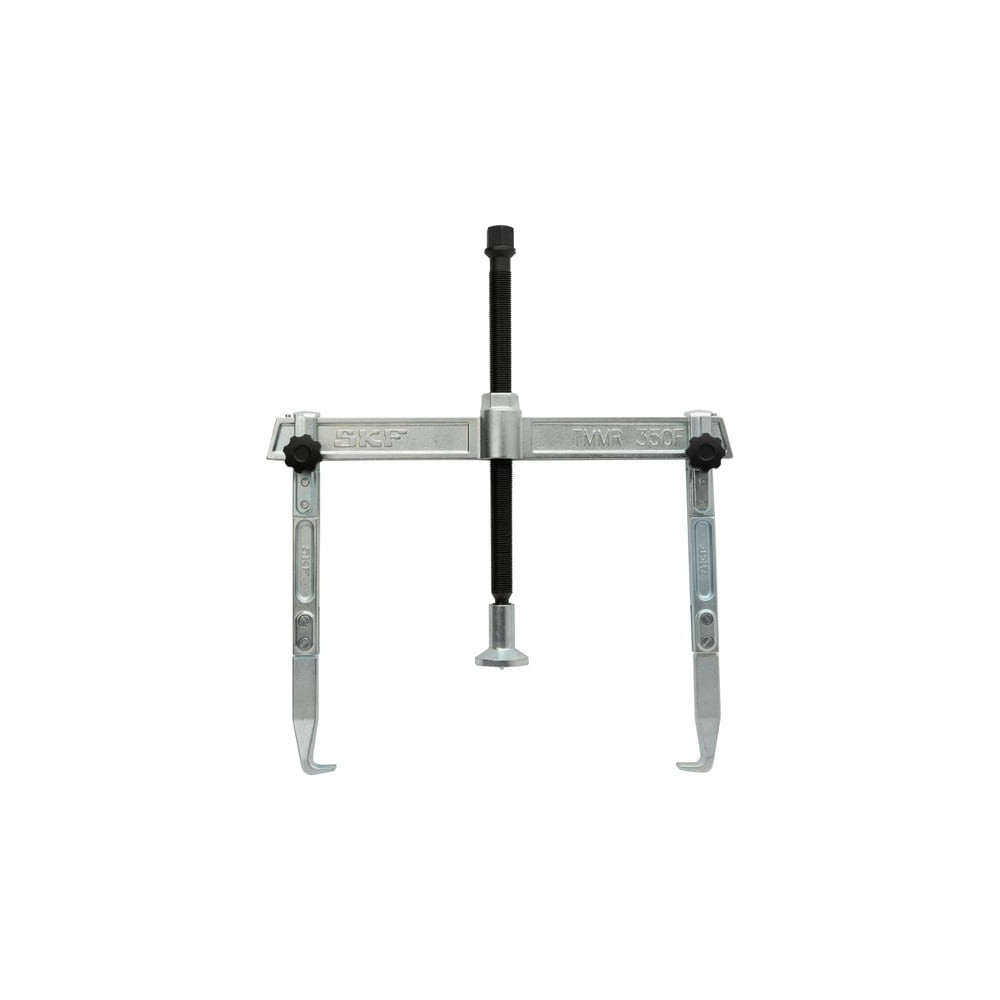

SKF TMMR 350XL Jaw pullers

Product Code: TMMR 350XL

Part/No: Eshop041943

Brand: SKF

Click here for more details

The multi-purpose SKF Reversible Jaw Puller TMMR 350XL is designed for internal and external pulling jobs of bearings and other components such as gears and pulleys. The puller features an extra long arm set which can be extended further with optional arm

Easy adjustment of the width of grip with self-locking arms
Essential and versatile tools for every workshop for internal and external pulling appliactions
Enhanced corrosion resistance and easy cleaning with zinc passivated arms and beam
No p

€317.39

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Effective arm length 221 mm

Claw height 8.5 mm

Claw length 16 mm

Claw width 25 mm

Puller or Adapter hexagon size 30 mm

Width of grip external 42 - 140 mm

Properties

Content 1x Puller TMMR 350XL,1x Nosepiece,1x Tube of spindle grease LGEV2/0.035,1x Printed instructions for use

Recommended applications For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft

Colour Metallic

Special features Reversible arms,Selflocking arms, Extendable arms,Nosepiece with spring loaded tip

Product weight 5.2 kg

Number of arms 2

Pulling force (max) 60 kN

Spindle torque (max) 160 N·m

Width of grip internal 123 – 384 mm

Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) Yes

Dismounting force generation Spindle

Suitable for workpiece dismounting from a Housing Yes, with spindle support (not included)

Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) Yes

Suitable for bearing dismounting from a Tapered seating (conical shaft) Yes
