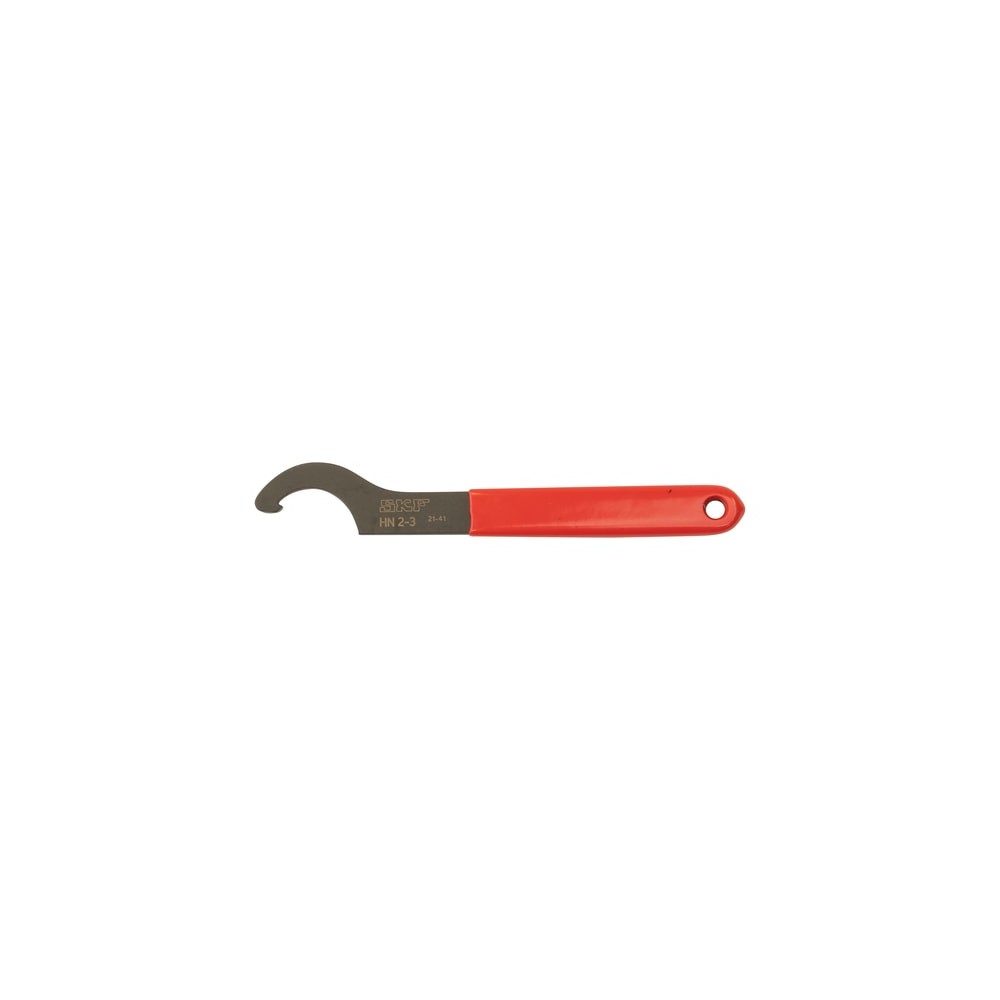

SKF HN 2-3 Locknut spanners

SKF HN 2-3 Locknut spanners

Product Code: HN 2-3
Part/No: 033917
Brand: SKF
The SKF Hook spanner, size 2 - 3, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They fit on a variety of lock nuts with outer diameter(s) 25 - 28 mm. To be more specific for locknuts: KM 2, KM 3, KMK 2, KMK 3, KMT 0, N 02, N 03 and M10x1, M12x1,5 (DIN 1804).
Optimised design allow use in narrow spaces while maintaining maximum force
Sturdy plastic handle that is oil, dirt and grease resistant to provide a better grip
Drilled hole for easy hanging storage
Laser-engraved designation for easy identification
They fit on a variety of locknuts with outer diameter(s) 25 - 28mm
€27.22
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Length 137 mm
Lenght 137 mm
Outer diameter locknut range, d 25-28 mm
Thickness n 4 mm
Working lenght, l 120 mm
Outer diameter lock nut range 25 to 28 mm
Thickness 4 mm
Working length 120 mm
Product weight 0.05 kg
Performance
Properties
Material Medium carbon steel, hardened and tempered
Coating Black phosphated
Allows bearing mounting yes, angle method or with clearance reduction measurement
Allow bearing mounting Yes, angle method or with clearance reduction measurement
Colour Black, with red handle
Spanner following DIN 1810 size 25-28 mm
Part of a kit No
Material handle Durable soft plastic
Fits on lock nuts inside SKF split pillow block housings (SNL) no
Minimum number of lock nut slots 1
Fits on lock nuts inside SKF split pillow block housings (SNL) _20 No
Logistics
Pack gross weight 0.06 kg
eClass name Product for mounting and dismounting and for maintenance
UNSPSC code 27-11-17-12
EAN code 07316572274330
Product net weight 0.05 kg
eClass code 23-05-19-01
