SKF TKRT 10

Product Code: TKRT 10

Part/No: 033692

Brand: SKF

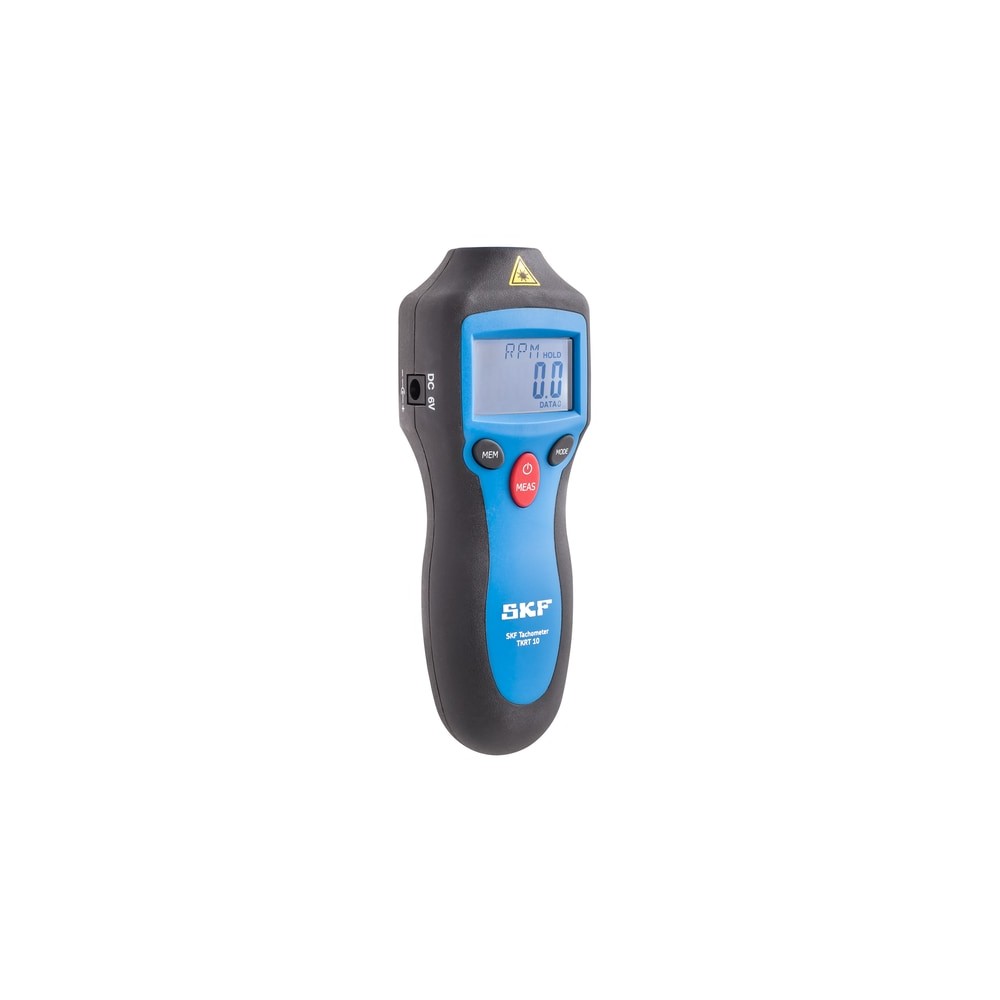

The SKF TKRT 10 is a fast and accurate tachometer utilizing laser or contact to measure rotational and linear speeds. Equipped with a laser and a range of contact adapters, it is a versatile instrument and suits many different applications.

Laser/contact measuring system
Wide speed measurement range
Multiple measurement modes
Large, back-lit LCD display
Angular range of ±45° for easy measuring
Up to 10 readings stored for reference
Includes basic set of contact adaptors

€277.71

Tax included

Quantity

100% Shopping Security

Shipped within 24 hours

Performance

Contact measurement distance (range) 50-500 mm

Contact measurement linear speed (range) 0.2- m/min

Contact measurement rotational speed modes r/min. Hz

Contact measurement rotational speed (range) 2-20.000 r/min

Optical measurement rotational speed (range) 3-99.999 r/min

Properties

Content 1xTachometer TKRT 10,1x Contact adaptor,1x Conical tip,1x conical recess,1x contact wheel,1x9V battery,1xSet of reflective tape,1xInstructions for use MP5425,1x Carrying case size A

Contact accessories Contact adaptor,Conical tip, conical recess and contact wheel, all included

Recommended applications Used to determine the speed of motors or shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts.

Colour Blue,Dark Grey

Total product weight 0.68 kg

Housing material ABS (plastics)

Relative humidity 10 to 90%, non-condensing

Battery 1x 9V Alkaline type IEC 6F22

Degree of protection (IP) IP40

Operating temperature range 0 – 50 °C

Battery Life 12 h

Laser power max 1 mW

Laser power class 2

Laser type Visible red line laser

Laser wavelength 650 nm
