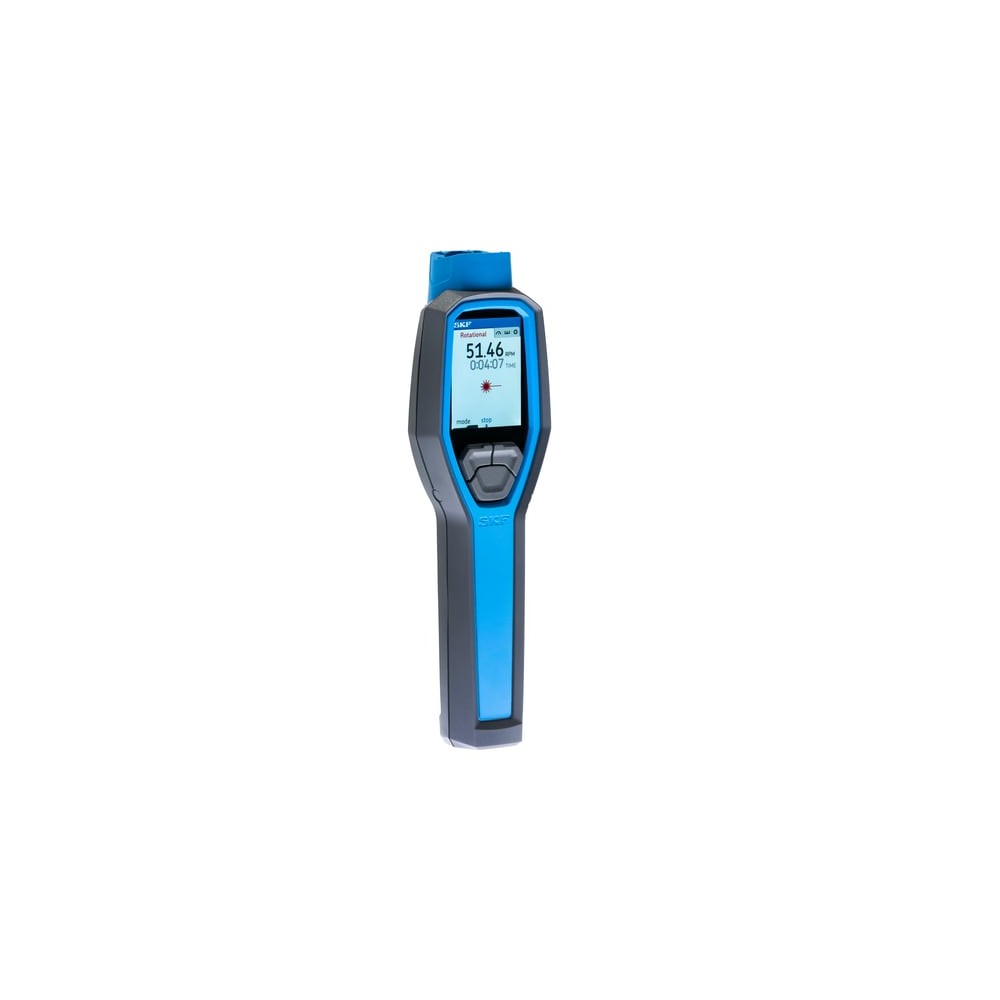

SKF TKRT 31

Product Code: TKRT 31

Part/No: Eshop042318

Brand: SKF

The TKRT 31 is an advanced, multi-functional digital tachometer. The large colour screen provides easy reading. Via the easy-button-control the user can quickly scroll through the menu and start operating. The TKRT uses laser or contact measurement to d

Large colour-backlit TFT display
Measures linear and rotational speed, and distances
Includes full set of contact adaptors
Large angular range simplifies measurement, where straight-line access is difficult
Supplied in a handy toolcase for eas

€932.43

Tax included

SEND REQUEST

100% Shopping Security

On Request

Performance

Contact measurement distance (range) 25-1.200 mm

Contact measurement linear speed (range) 0.1-2.000 m/min

Contact measurement rotational speed modes r/min. Hz

Contact measurement rotational speed (range) 0-20.000 r/min

Optical measurement rotational speed (range) 1-99.999 r/min

Properties

Content 1xTachometer TKRT 31,1x Contact adaptor,1xExtension shaft,2xconical tips,2xwheels (C=0.1 m and C=6 in),2xAA batteries,1xSet of reflective tape,1xInstructions for use (MP5509),1x Carrying case (size A)

Contact accessories Contact adaptor,Extension shaft,2x Conical tips,2xContact wheels (C=0.1 m and C=6 in)

Recommended applications Used to determine the speed of motors or shafts, as well as for measuring the speed and length of moving surfaces such as V-belts and conveyor belts.

Colour Blue,Dark Grey

Total product weight 0.85 kg

Housing material ABS (plastics)

Relative humidity 10 to 90%, non-condensing

Battery 2x AA (Alkaline (incl.) or Rechargable)

Degree of protection (IP) IP40

Operating temperature range 0 – 40 °C

Battery Life 8 h

Laser power max 1 mW

Laser power class 2

Laser type Visible red line laser

Laser wavelength 650 nm
