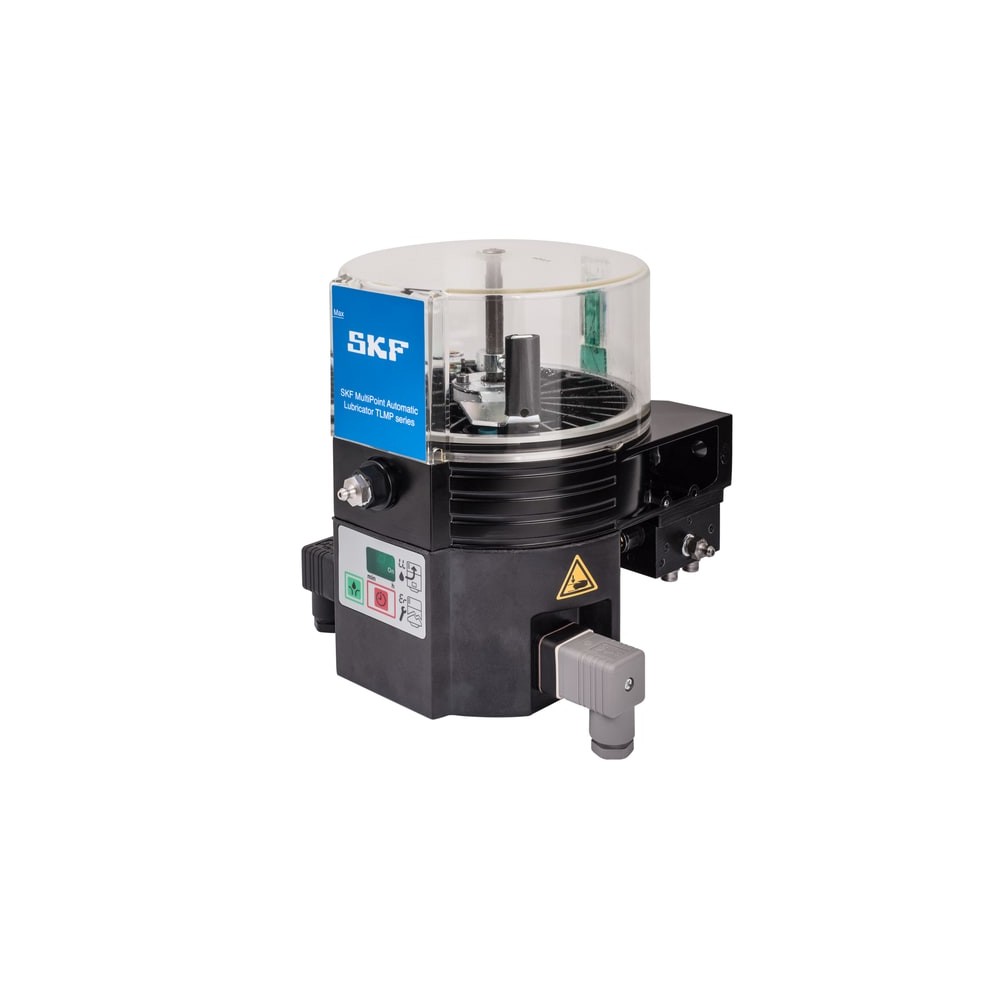

SKF TLMP 1018/120V Multi point automatic lubricators

Product Code: TLMP 1018/120V

Part/No: Eshop042243

Brand: SKF

Click here for more details

SKF Multi point automatic lubricators are sturdy and durable systems packaged as complete kits, including the lubricator, required tubing, and connectors. Designed to supply from one to eighteen lubrication points, the lubricators feature pluggable outlets and are easy to install and program via a keypad with LED display. Featuring a reservoir capacity of nearly one litre, the lubricators have a stirring paddle to prevent grease separation, making them suitable for more lubricants. With a high IP protection rating, they are vibration resistant, withstand equipment washdowns, and prevent contamination ingress.

Easy to install and program
Complete kit
Suitable for up to 18 lubrication points
Low-level and malfunction alarms, remote notification possible
Machine steering capable
Developed for industrial applications, as well as agricultural and off-road vehicles

€0.00

(*The price will be determined)

Tax included

Quantity

100% Shopping Security

On Request

Dimensions

Performance

Properties

Type Multipoint lubricator

Dimensions (WxLxH) 237 x 214 x 231 mm

Alarms Yes, blocked feed lines, empty reservoir. Internal and external

Amperage (max) 1

Ambient temperature range -25 – 70 °C

Content 1x Pump TLMP 1018/120V;Set of fitting material;2x Electrical connectors;1x 50m plastic pipe nylon 6 x 1.5 mm; 18x straight tube connectors;18x tube connector plugs;17x outlet closure plugs

Degree of protection (IP) IP 67

Drive mechanism Electro mechanical (machine steered)

Highest dispense setting 40 ml/d

Lowest dispense setting 0.1 ml/d

Dispense rate range 0.1 – 40 ml/d

Electric connection DIN 43650/A (EN 175301-803)

External steering Yes

Housing material Metal

Lubrication outlets 1/18/2024

Maximum feed line length 5000 mm

Mounting position Vertical

Power source Electric (external)
