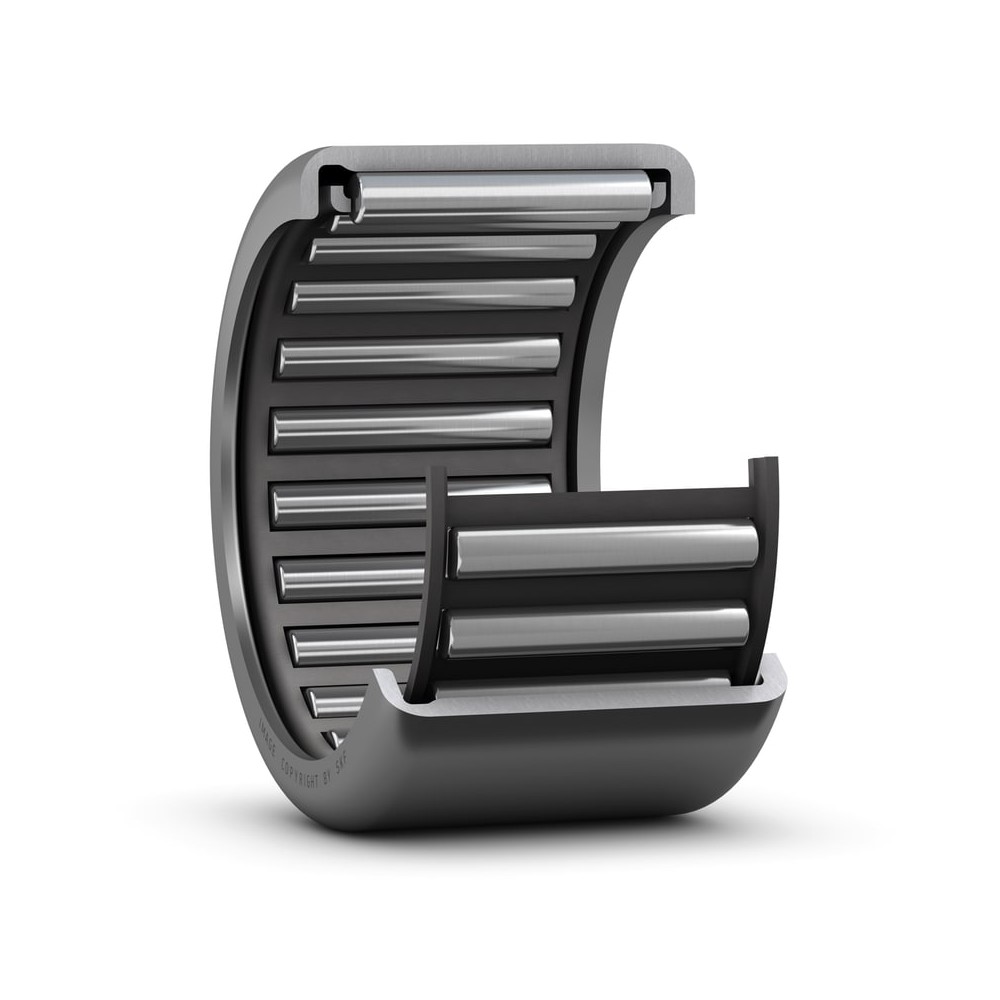

SKF HK 4512 Needle roller bearings

SKF HK 4512 Needle roller bearings

Product Code: HK 4512
Part/No: Eshop012561
Brand: SKF
Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
High radial load carrying capacity
High stiffness
Very low cross-sectional height
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Outside diameter 52 mm
Width 12 mm
Bore diameter of needle roller complement 45 mm
Performance
Basic dynamic load rating 14.2 kN
Basic static load rating 27.5 kN
Limiting speed 6.300 r/min
Reference speed 5.600 r/min
Properties
Sealing Without
Cage Sheet steel
Lubricant None
Number of rows 1
Relubrication feature Without
Bearing part Bearing without inner ring
Number of flanges outer ring 2
Coating Without
Material bearing Bearing steel
Tolerance class Normal
Outer ring type Drawn cup with open ends
Aligning feature Without
Logistics
EAN code 07316570034110
Product net weight 0.0311 kg
eClass name Needle roller bearing
