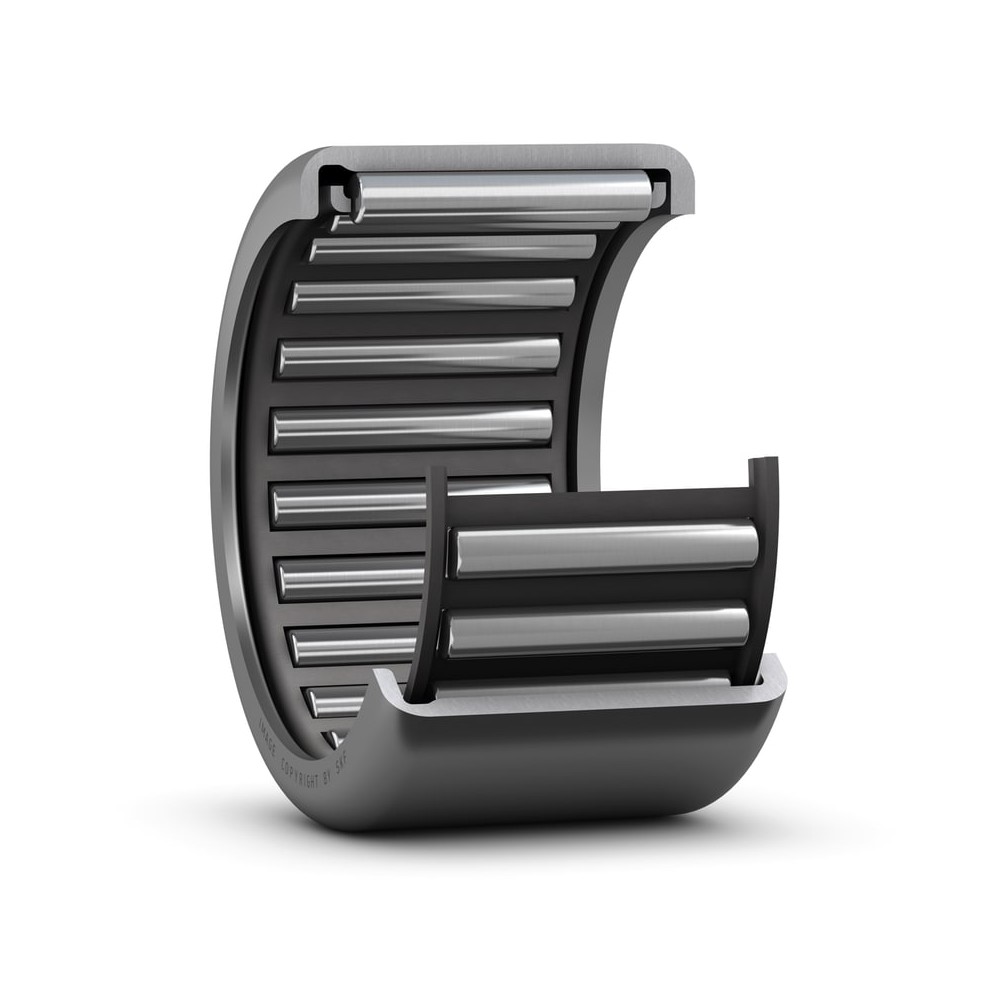

SKF HK 5520 Needle roller bearings

SKF HK 5520 Needle roller bearings

Product Code: HK 5520
Part/No: 007835
Brand: SKF
Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
High radial load carrying capacity
High stiffness
Very low cross-sectional height
€41.07
Tax included
Quantity

100% Shopping Security
  Shipped within 24 hours
Dimensions
Outside diameter 63 mm
Width 20 mm
Performance
Basic dynamic load rating 30.3 kN
Basic static load rating 67 kN
Limiting speed 5,000 r/min
Reference speed 4,500 r/min
Properties
Bore diameter of needle roller complement 55 mm
Sealing Without
Cage Sheet steel
Lubricant None
Number of rows 1
Relubrication feature Without
Tolerance class Normal
Bearing part Bearing without inner ring
Aligning feature Without
Number of flanges outer ring 2
Outer ring type Drawn cup with open ends
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 84.5 g
eClass name Needle roller bearing
EAN 7316577711953
Product net weight 55.2 g
