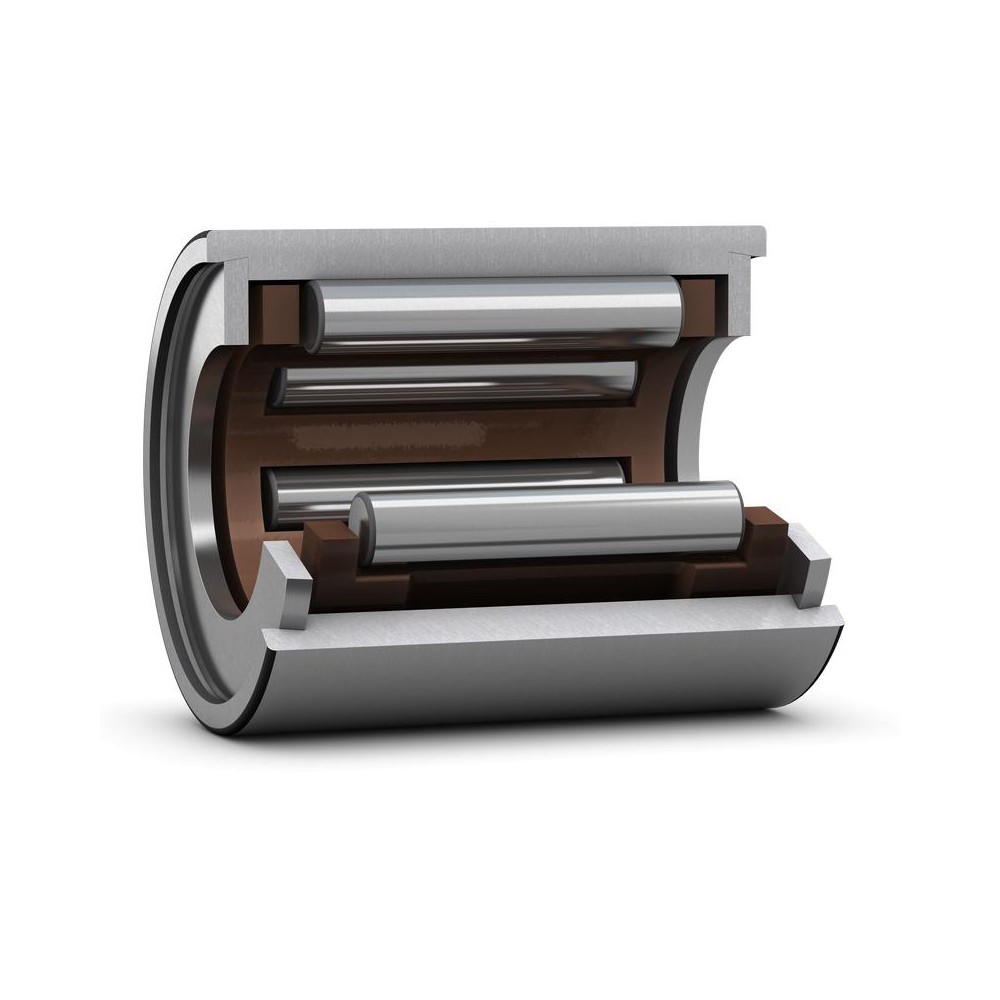

SKF NK 9/12 TN Needle roller bearings

SKF NK 9/12 TN Needle roller bearings

Product Code: NK 9/12 TN
Part/No: Eshop014830
Brand: SKF
Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two non-separable closure rings that act as flanges to guide the bearing axially.
High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
€31.93
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Outside diameter 16 mm
Width 12 mm
Performance
Basic dynamic load rating 4.4 kN
Basic static load rating 5.2 kN
Limiting speed 34,000 r/min
Reference speed 30,000 r/min
Properties
Bore diameter of needle roller complement 9 mm
Sealing Without
Cage Nonmetallic
Lubricant None
Number of rows 1
Relubrication feature Without
Tolerance class Normal
Bearing part Bearing without inner ring
Aligning feature Without
Number of flanges outer ring 2
Outer ring type Machined (solid)
Coating Without
Material bearing Bearing steel
Logistics
Pack gross weight 0.013 kg
eClass name Needle roller bearing
EAN 7316577117687
Product net weight 0.395 kg
