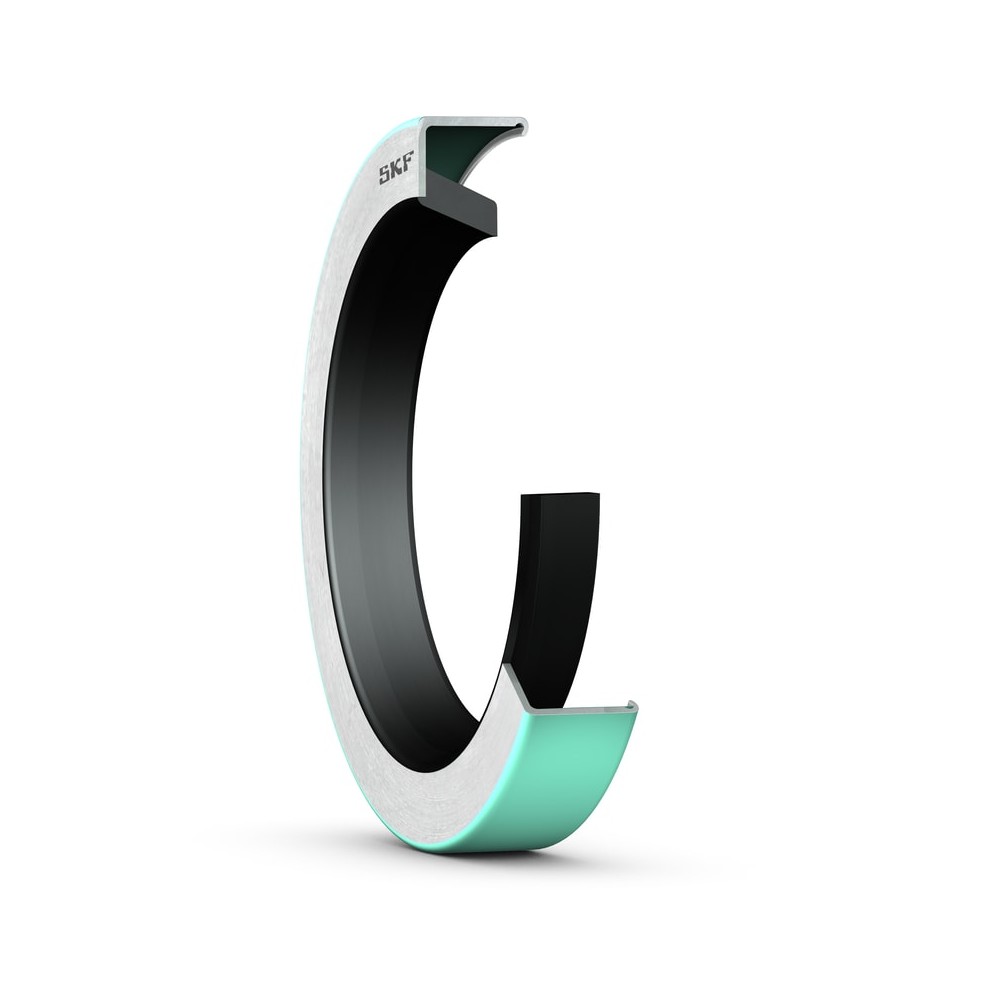

SKF 12330 Radial shaft seals

SKF 12330 Radial shaft seals

Product Code: 12330
Part/No: Eshop043575
EAN: 85311010870
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM14 seals are designed with a sealant coated metal case. They have a conventional single sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
Maximise the exclusion of contamination
Accommodate low speed
Easy installation
€4.65
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 31.75 mm
Housing bore diameter 38.1 mm
Seal width 3.175 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 6 m/s
Minimum operating temperature -40 °C
Rotational speed 3.609 r/min
Properties
Shaft diameter 31.75 mm
Design HM14
Auxiliary lip No
Unit system Inch
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Metal-cased
Logistics
EAN code 85311010870
Product net weight 0.003 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.0086 kg
