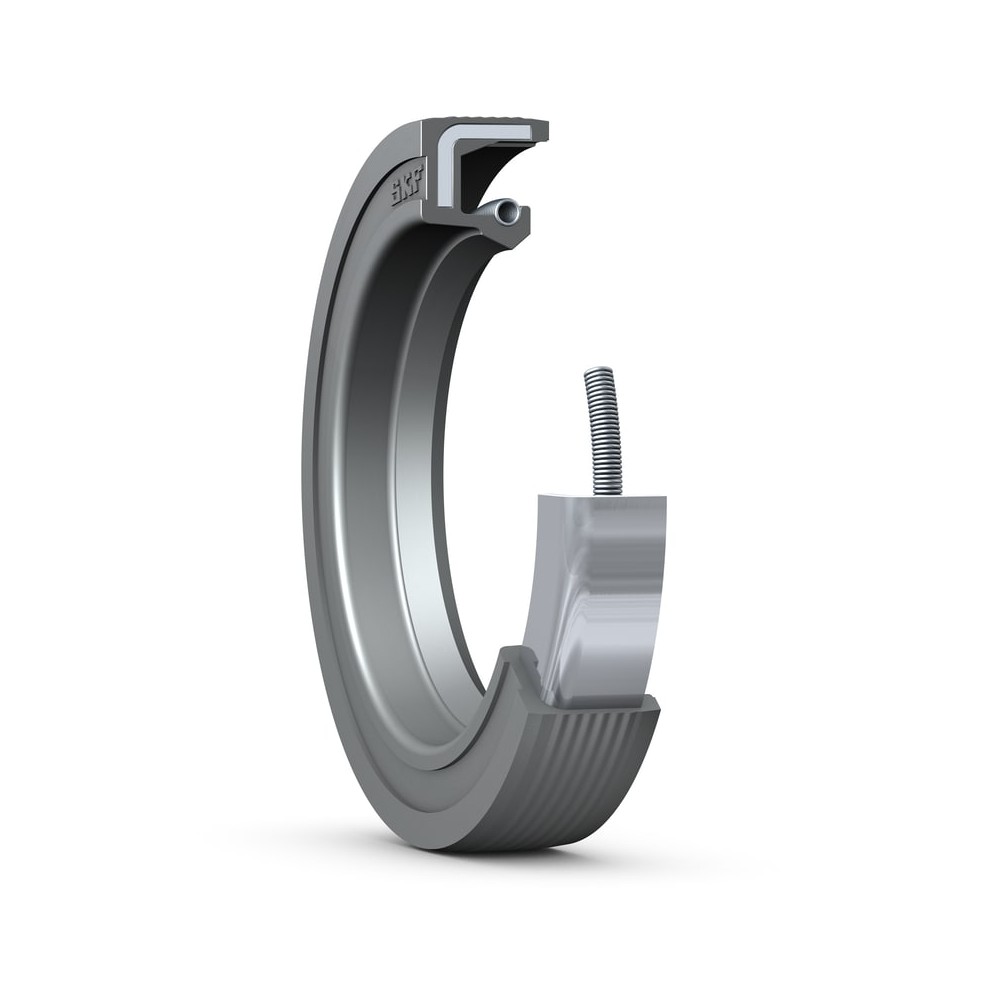

SKF 15X24X7 HMS5 RG1 Radial shaft seals

SKF 15X24X7 HMS5 RG1 Radial shaft seals

Product Code: 15X24X7 HMS5 RG1
Part/No: Eshop043747
EAN: 0731657453830
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMS5 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer with a garter spring to maintain the right radial load.
High pumping rate
With garter spring
Accommodate misalignment
€1.40
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 15 mm
Housing bore diameter 24 mm
Seal width 7 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 2.96 m/s
Minimum operating temperature -40 °C
Rotational speed 3.780 r/min
Properties
Shaft diameter 15 mm
Design HMS5
Auxiliary lip No
Unit system Metric
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Rubber metal reinforced
Logistics
EAN code 07316574538300
Product net weight 0.0034 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.0078 kg
