SKF
  • SALE!

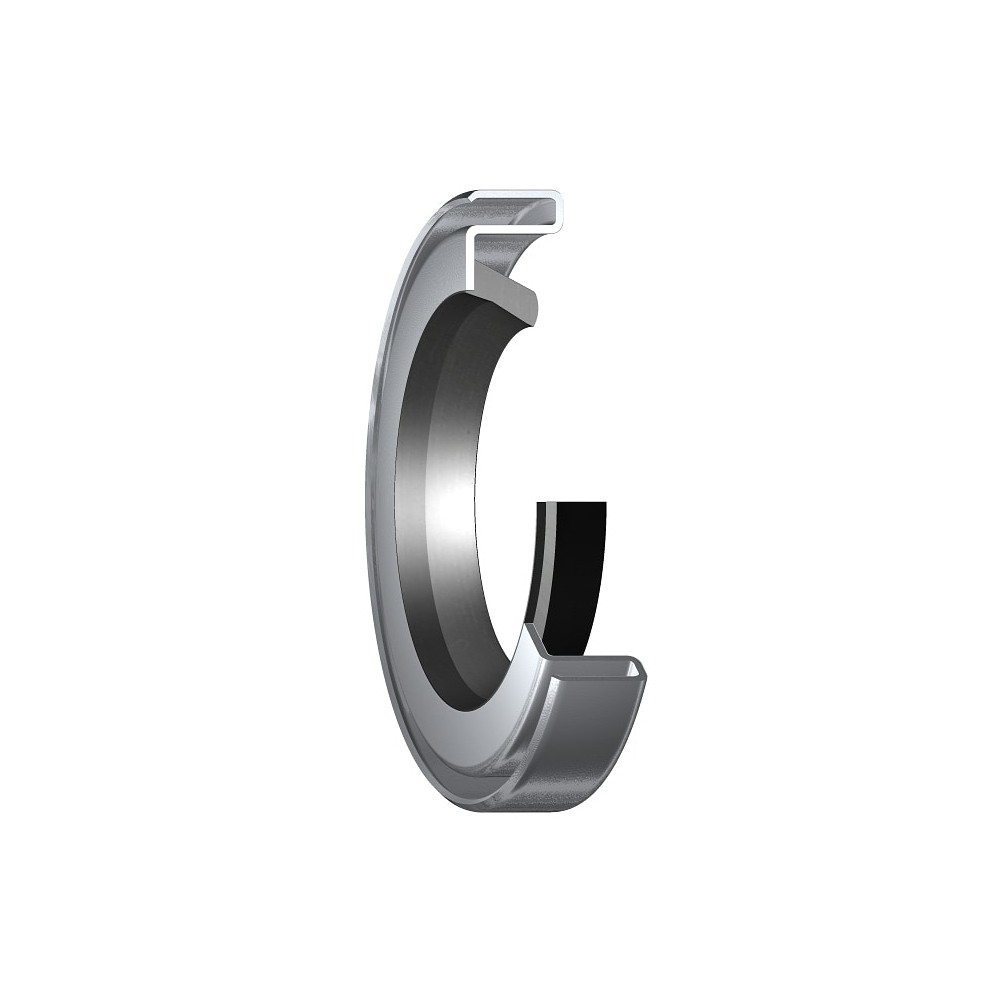

SKF 18558 Radial shaft seals

SKF 18558 Radial shaft seals

Product Code: 18558
Part/No: Eshop044071
EAN: 85311020121
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM21 seals are designed with a sealant coated metal case. They have a conventional double sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
Maximise the exclusion of contamination
Accommodate low speed
Easy installation
€0.00
(*The price will be determined)
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 47.63 mm
Housing bore diameter 63.5508 mm
Seal width 6.35 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 7.64 m/s
Minimum operating temperature -40 °C
Rotational speed 3.064 r/min
Properties
Shaft diameter 47.63 mm
Design HM21
Auxiliary lip No
Unit system Inch
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Metal-cased
Logistics
EAN code 85311020121
Product net weight 0.0181 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.024 kg
