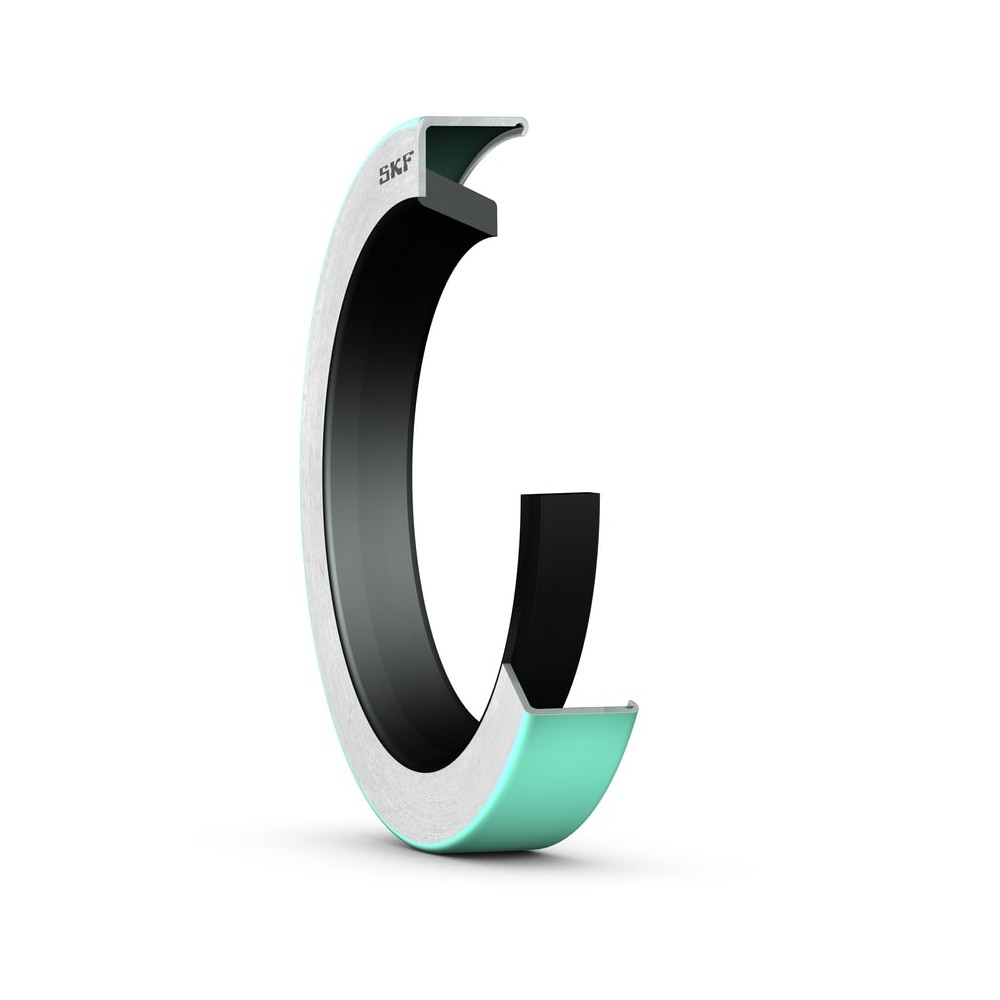

SKF 19820 Radial shaft seals

SKF 19820 Radial shaft seals

Product Code: 19820
Part/No: Eshop044099
EAN: 85311022293
Brand: SKF
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM14 seals are designed with a sealant coated metal case. They have a conventional single sealing lip made of elastomer. Typical applications include grease lubricated agriculture machinery.
Maximise the exclusion of contamination
Accommodate low speed
Easy installation
€16.13
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 50.8 mm
Housing bore diameter 69.9008 mm
Seal width 4.7752 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 7.9 m/s
Minimum operating temperature -40 °C
Rotational speed 2.970 r/min
Properties
Shaft diameter 50.8 mm
Design HM14
Auxiliary lip No
Unit system Inch
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Metal-cased
Logistics
EAN code 85311022293
Product net weight 0.0159 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.0218 kg

Related Products

4 other products in the same category:

SKF 1200150 Radial shaft seals
SKF

SKF 1200150 Radial shaft seals

Shaft diameter 304.8 mm
Housing bore diameter 336.55 mm
Seal width 25.4 mm
Reference: 1200150
Price €0.00
*Prices with vat
  On Request

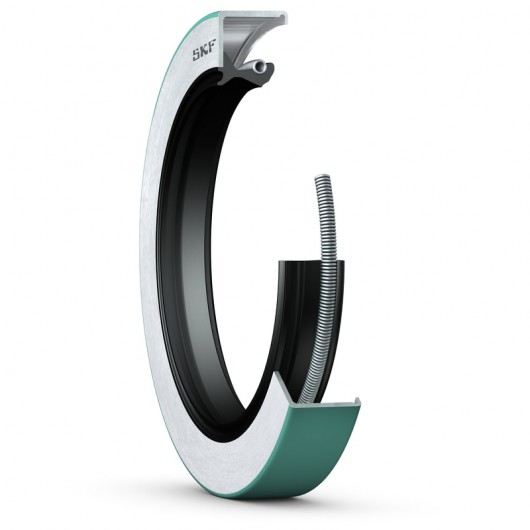

SKF 33701 Radial shaft seals
