SKF 20X47X10 HMS5 RG Radial shaft seals

SKF 20X47X10 HMS5 RG Radial shaft seals

Product Code: 20X47X10 HMS5 RG
Part/No: Eshop044198
EAN: 0731657254956
Brand: SKF

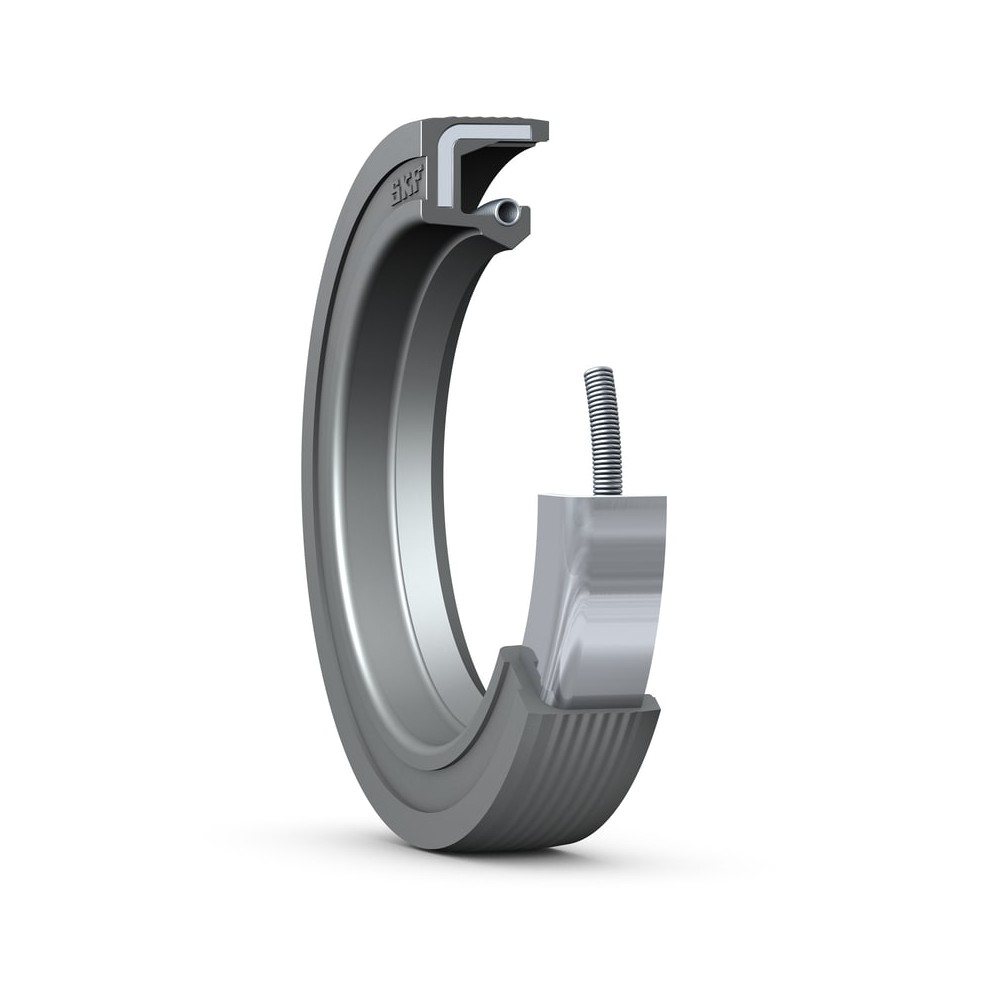

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMS5 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer with a garter spring to maintain the right radial load.
High pumping rate
With garter spring
Accommodate misalignment
€2.31
Tax included
Quantity

100% Shopping Security
  On Request
Dimensions
Shaft diameter 20 mm
Housing bore diameter 47 mm
Seal width 10 mm
Performance
Maximum operating temperature 100 °C
Permissible circumferential speed 4.12 m/s
Minimum operating temperature -40 °C
Rotational speed 3.960 r/min
Properties
Shaft diameter 20 mm
Design HMS5
Auxiliary lip No
Unit system Metric
Sealing lip material Nitrile rubber (NBR)
Type of outside diameter Rubber metal reinforced
Logistics
EAN code 07316572549568
Product net weight 0.0188 kg
eClass name Radial shaft pack. ring
Pack gross weight 0.0235 kg
